Switch SOLTECH Gigabit S-Ring SFC4500HP
- 24 cổng Ethernet 10/100/1000Mbps
- 24 cổng hỗ trợ PoE IEEE 802.3af/at
- Tổng PoE Budget tối đa 380W
- 4 khe SFP 100M/1Gbps
- 2 cổng Combo tại vị trí cổng 23 và 24
- Managed Switch Layer 2
- Hỗ trợ S-Ring, thời gian phục hồi dưới 10ms
- Hỗ trợ ITU-T G.8032 ERPS
- Switch Fabric 52Gbps
- Throughput 38,68Mpps
- MAC Table 8K
- Jumbo Frame 9.600 byte
- Hỗ trợ VLAN, STP/RSTP/MSTP, LACP, IGMP Snooping
- Quản lý qua Web, Telnet, SSH, SNMP và Syslog
- Nguồn AC 100–240V
- Thiết kế Rack Mount.
✓
Chính hãng 100%
⚙
Bảo hành chính hãng
⏱
Hỗ trợ 24/7
| Standards | IEEE 802.3 10Base-T IEEE 802.3z Gigabit SX/LX IEEE 802.1d Spanning Tree Protocol IEEE 802.1s Multiple Spanning Tree Protocol IEEE 802.1Q VLAN Tagging IEEE 802.1x Port Authentication Network Control IEEE 802.3u 100Base-TX/100Base-FX IEEE 802.3ab Gigabit 1000T IEEE 802.1w Rapid Spanning Tree Protocol IEEE 802.1p Class of Service IEEE 802.3af Power over Ethernet IEEE 802.3at Power over Etherent |
|---|---|
| RJ45 Ports | PoE 10/100/1000Mbps TP 24-Ports (Combo Port : 23,24) Auto-Negotiation Auto MDI-X |
| Fiber Ports | SFP 4-Slots (Combo Port : 23,24) 1000Mbps-SX/LX SFP, 100Mbps-FX SFP, Speed Auto Detection |
| LED Indicators | System : Power Ports : 10/100/1000Mbps Link/Act, PoE In-Use, SFP Link |
| Back Plane | Switch Fabric 52Gbps, 8K MAC Address table, Jumbo Frame 9.6Kbytes |
| Ring | S-Ring Support |
| PoE | PoE Power Budget : Max. 400Watt Number of PD@7Watt / 24Port Number of PD@15.4Watt / 24Port Number of PD@30.8Watt / 12Port |
| Temperature | Operation : 0℃ ~ 60℃ Storage : -20℃ ~ 80℃ |
| Humidity | 5 ~ 95% (Non-condensing) |
| Input Voltage | 100 ~ 240VAC, 50/60Hz |
| Dimension | 440mm (W) x 360mm (D) x 44mm (H) |
- Gigabit S-Ring (Recovery time < 10ms
- TP 24-Port + SFP 4-Slots (Combo Port : 23, 24)
- 802.3at PoE 30.8W (Max. 400W)
- Web based Management, SNMP Management
- IGMP Snooping
- IEEE 802.1p QoS, VoIP QoS
- Port Mirroring for Analysis of Network Errors and Traffics
- Network Security Optimization by IEEE 802.1 Q-in-Q
- IEEE 802.1x User Authentication for Network Security
- IEEE 802.1d & IEEE 802.1w Rapid Spanning Tree
Description
Without a separate power line POE Ethernet switch24-port POE Ethernet switch that provides reliable data and power supply. It provides stable power and supports web-based management, so it can be widely used such as webcam, wireless router, and CCTV.
Stable power supply Supports up to 380WThe SFC4500HP supports 802.3at af 24 POE total of 380 Watts of power. Reliable power supply is possible even if you use 24 ports simultaneously.
Fast recovery time S-Ring ProtocolWith Soltech’s technology, the S-Ring protocol with reliable and fast recovery time is built to create a stable network environment with easy setup and fast recovery time.

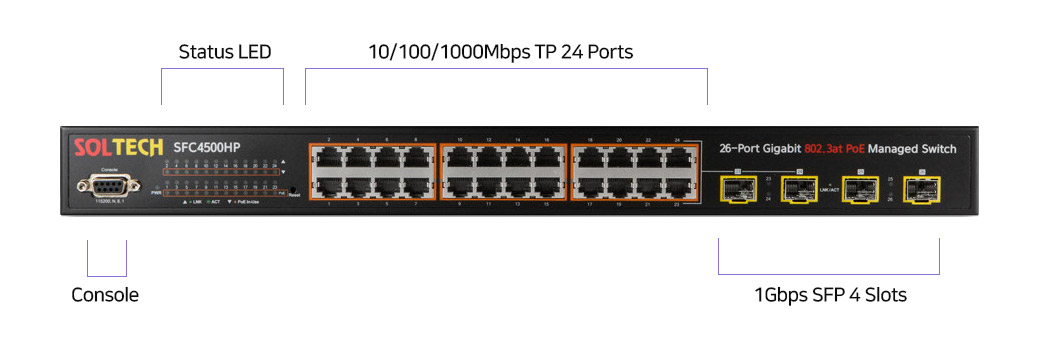

Product Details
Construction

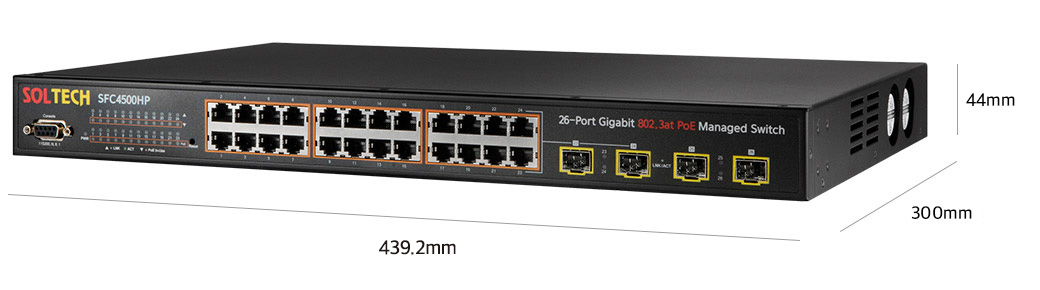

Dimensions
Compare Product Lines
SFC400GM SFC420GM SFC400HP SFC4000HP SFC4000T SFC450R SFC450HP SFC4500T SFC4500HP RJ45Port 8 TP(1Gbps) 8 TP(1Gbps) 8 TP(1Gbps) 24 TP(1Gbps) 24 TP(1Gbps) 8 TP(1Gbps) 8 TP(1Gbps) 24 TP(1Gbps) 24 TP(1Gbps) PoE Port – – 8 PoE(af/at) 24 PoE(af/at) – – 8 PoE(af/at) – 24 PoE(af/at) Combo Port – – – 2 Port(23,24) – – – 2 Port(23,24) 2 Port(23,24) SFP/SFP+ Port 2 SFP(1Gbps) 2 SFP(1Gbps) 2 SFP(1Gbps) 4 SFP(1Gbps) 4 SFP(1Gbps) 2 SFP(1Gbps) 2 SFP(1Gbps) 4 SFP(1Gbps) 4 SFP(1Gbps) Switch Fabric 20Gbps 20Gbps 20Gbps 52Gbps 56Gbps 20Gbps 20Gbps 52Gbps 52Gbps Throughput 14.8Mpps 14.8Mpps 14.8Mpps 36.68Mpps 41.6Mpps 14.8Mpps 14.8Mpps 38.68Mpps 38.68Mpps Memory(RAM) 128MB 128MB 128MB 128MB 128MB 128MB 128MB 128MB 128MB Flash Memory 16MB 16MB 16MB 16MB 16MB 16MB 16MB 16MB 16MB MAC Table 8K 8K 8K 8K 8K 8K 8K 8K 8K Jumbo Frame 9.6K 9K 9.6K 9.6K 9K 9.6K 9.6K 9.6K 9.6K Operating Temperature 0 ~ 60℃ 0 ~ 50℃ 0 ~ 60℃ 0 ~ 60℃ 0 ~ 50℃ 0 ~ 60℃ 0 ~ 60℃ 0 ~ 60℃ 0 ~ 60℃ Power Input AC 100 ~ 240V AC 100 ~ 240V AC 100 ~ 240V AC 100 ~ 240V AC 100 ~ 240V AC 100 ~ 240V AC 100 ~ 240V AC 100 ~ 240V AC 100 ~ 240V Power Consumption AC 7.6W AC 10W AC 130W AC 441W AC 25W AC 7.6W AC 130W AC 36W AC 441.1W PoE Capacity – – PoE Max. 120W PoE Max. 380W – – PoE Max. 120W – PoE Max. 380W Installation Method Rack Mount Rack Mount Rack Mount Rack Mount Rack Mount Rack Mount Rack Mount Rack Mount Rack Mount Dimension (WxDxH) 217 x 155 x 44 (mm) 280 x 180 x 44 (mm) 331 x 153 x 44 (mm) 439.5 x 300 x 44 (mm) 440 x 230 x 45 (mm) 217 x 155 x 44 (mm) 331 x 153 x 44 (mm) 439 x 300 x 44 (mm) 439 x 300 x 44 (mm) STP/RSTP/MSTP
802.1Q VLAN
IEEE 802.1
IGMP Snooping
ERPS, S-RING
