SFC8000GHP 2.5G POE SFP 4 port TP 8 port industrial switching hub
✓
Chính hãng 100%
⚙
Bảo hành chính hãng
⏱
Hỗ trợ 24/7
| Standards | IEEE 802.3/3u/3ab/3z 10Base-T / 100base-Tx and 100Base-Fx / 1000base-T / Gigabit Fiber IEEE 802.1w Rapid spanning tree protocol IEEE 802.1Q VLAN Tagging, IEEE 802.ad LACP |
|---|---|
| RJ45 Ports | 10/100/1000Mbps TP 8-Ports Auto MDI/MDI-X TP/STP Cat. 3, 4, 5, 6 Cable EIA/TIA-568 100-ohm (100m) |
| Fiber Ports | 100/1000/2.5 Gbps SFP Slot Multi mode : 50/125㎛, 62.5/125㎛, Single mode : 9/125㎛ |
| LED Indicators | Per unit : Power, Power Input 1, Power Input 2, Fault/Alarm, Ring Master 1000Mbps TP port : Speed (1000Mbps, Yellow), Link/Activity (Green) Mini-GBIC : Link/Activity (Green) |
| Input/Output | 2 Input, 2 Output |
| Back Plane | Switch Fabric 30Gbps |
| MAC Address | 8K MAC Address table |
| Throughput | 22.3Mpps |
| Temperature | Operation : -40℃ ~ 80℃ Storage : -40℃~ 85℃ PoE Full Load : 40℃ ~ 50℃ |
| Humidity | 5 ~ 95% (Non-condensing) |
| Input Power | DC 54V, Polarity Protection Circuit |
| Connection | 2 removable 2 contact terminal blocks |
| PoE | Max. PoE Output Power budget : 30W/Per port 240W for total PD's consumption (depending on power input) |
| Installation Method | DIN-Rail, Panel mounting |

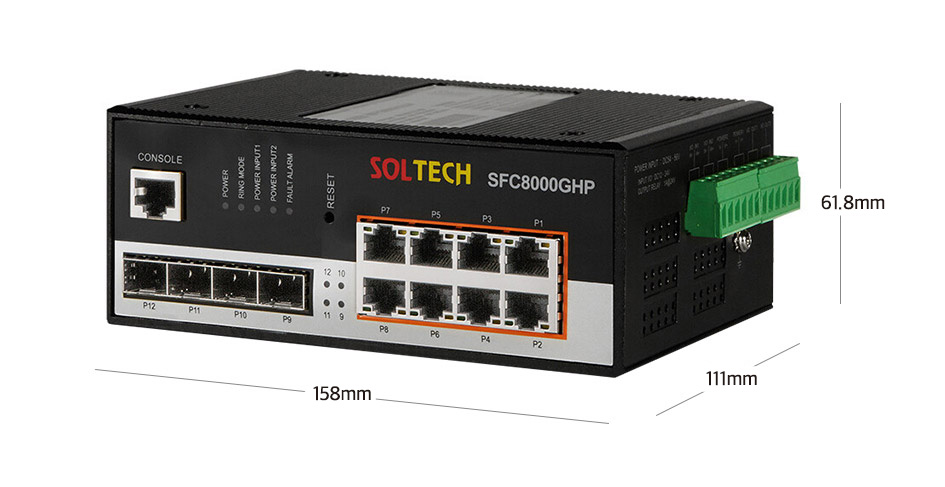

| Dimensions | 61mm (W) x 110mm (D) x 157mm (H), Aluminum case, IP30 |
- 10/100/1000Mbps TP 8-Ports (802.3at PoE) + 1Gbps SFP 2-Slots + 2.5Gbps SFP 2-Slots
- Web based Management, Telnet, SSH, SNMP, RMON, Syslog
- Auto Scan Manager Program (Scan, IP Setting)
- STP (IEEE 802.1D) / RSTP (IEEE802.1W) / MSTP (IEEE802.1Q)
- S-Ring(Recovery time < 10ms), Dual-Ring
- Carrier Ethernet (ERPS)
- PMC support (IGMP/MLD)
- Priority Queue Support (8 Queue per port)
Description
Industrial Ethernet optical switch that can withstand extreme environmentsIndustrial fiber optic ethernet switch that can endure severe environment allowing to provide high speed reliable network to rough industrial field smart city, factory, plants, apartment and buildings. Web-based management allows the user to have convenient maintenance.

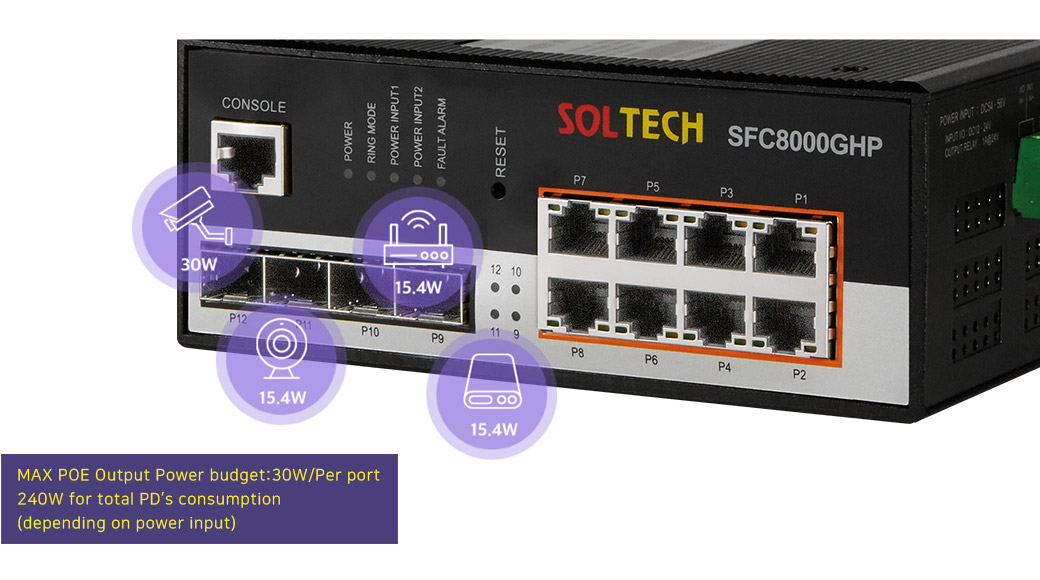

Industrial PoE switch that does not require a separate power lineBest power reliability for maximum 100 meter distance at industrial environment. By following IEEE 802.at PoE, 30W per port can be used for the 8 PoE port at the same time supporting maximum power budget of 240W.

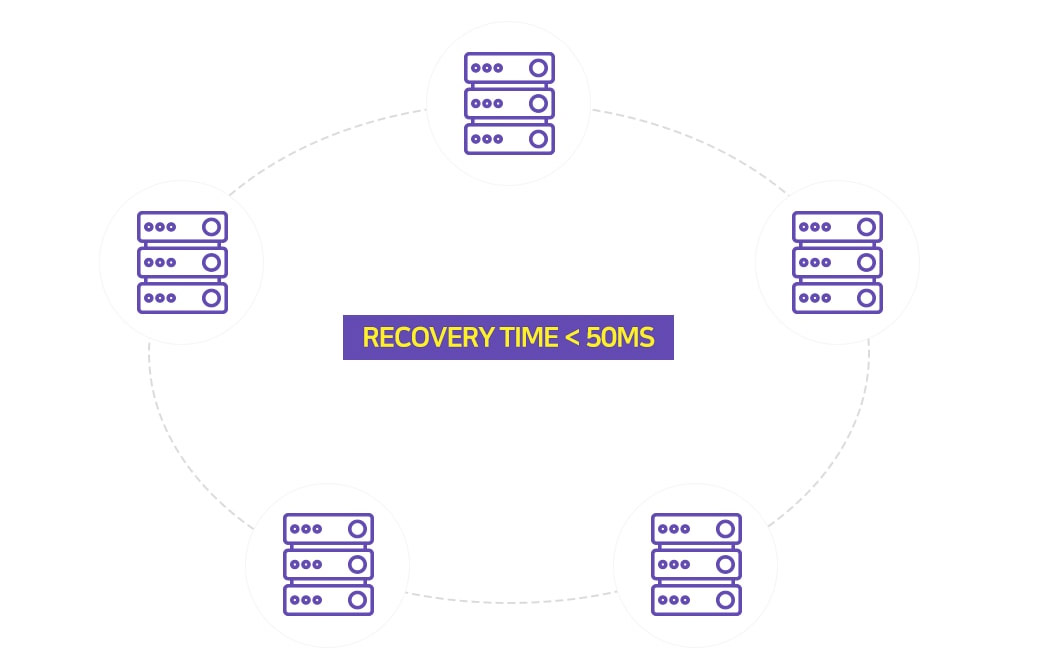

Fast recovery time S-RING protocolWith SOLTECH’s high technical background, we developed our own ring protocol called S-RING. S-RING allows optimized network with high speed recovery time during the failure, and the user convenience by easy setting.
Product Details
Construction
Dimensions
Compare Product Lines
SFC8000 SFC8000HP SFC8000G SFC8000GHP SFC8000BP SFC8000S RJ45Port 8 TP(1Gbps) 8 TP(1Gbps) 8 TP(1Gbps) 8 TP(1Gbps) 8 TP(1Gbps) 4 TP(1Gbps) PoE Port – 8 PoE(af/at) – 8 PoE(af/at) – – SFP/SFP+ Port 2 SFP(2.5Gbps) 2 SFP(2.5Gbps) 2 SFP(1Gbps)
2 SFP(2.5Gbps)2 SFP(1Gbps)
2 SFP(2.5Gbps)2 SFP(1Gbps)
2 SFP(2.5Gbps)2 SFP(2.5Gbps) BYPASS – – – –
– Switch Fabric 26Gbps 26Gbps 30Gbps 30Gbps 30Gbps 18Gbps Throughput 19.3Mpps 19.3Mpps 22.3Mpps 22.3Mpps 22.3Mpps 13.3Mpps Memory(RAM) 128MB 128MB 128MB 128MB 128MB 128MB Flash Memory 16MB 16MB 16MB 16MB 16MB 16MB MAC Table 8K 8K 8K 8K 8K 8K Jumbo Frame 9.6K 9.6K 9.6K 9.6K 9.6K 9.6K Power Input DC 12 ~ 56V DC 48 ~ 56V DC 12 ~ 56V DC 48 ~ 56V AC 100 ~ 240V DC 12 ~ 56V Power Consumption AC 10.6W AC 260W AC 12.3W AC 262W AC 12.5W AC 7.6W PoE Capacity – PoE Max. 240W – PoE Max. 240W – – Dual Power Installation Method Wall or DinRail Wall or DinRail Wall Mount Wall or DinRail Rack Mount DinRail Mount Dimension(WxDxH) 62 x 111 x 158 (mm) 62 x 111 x 158 (mm) 151 x 154 x 44 (mm) 62 x 111 x 158 (mm) 266 x 184 x 88 (mm) 41 x 106 x 112 (mm) STP/RSTP/MSTP
802.1Q VLAN
IEEE 802.1
IGMP SnoopingERPS, S-RING
