Switch SOLTECH S-Ring 8-port PoE SFC450HP
Switch Soltech

Switch SOLTECH S-Ring 8-port PoE SFC450HP

✓ Chính hãng 100%
⚙ Bảo hành chính hãng
⏱ Hỗ trợ 24/7
Yêu cầu báo giá 0978 994 988
Standards IEEE 802.3 10Base-T Ethernet IEEE 802.3u 100Base-TX Fast Ethernet IEEE 802.3ab 1000Base-T IEEE 802.3ad Port trunk with LACP IEEE 802.1Q VLAN Tagging IEEE 802.1w Rapid Spanning Tree IEEE 802.1x Port Authentication Network Control IEEE 802.3z Gigabit SX/LX IEEE 802.1p Class of Service IEEE 802.3x Flow Control and Back Pressure IEEE 802.1d Spanning Tree IEEE 802.3at Power Over Ethernet IEEE 802.3af Power Over Ethernet
RJ45 Ports 10/100/1000Mbps TP 8-Ports TP/STP Cat. 3,4,5 Cable EIA/TIA-568 100-ohm (100m)
Fiber Ports 100/1000Mbps SFP 2-Slots Multi mode : 62.5/125㎛ (220m), Single mode : 9/125㎛ (~100km)
LED Indication 100/1000Mbps SFP 2-Slots Multi mode : 62.5/125㎛(220m), Single mode : 9/125㎛(~100km)

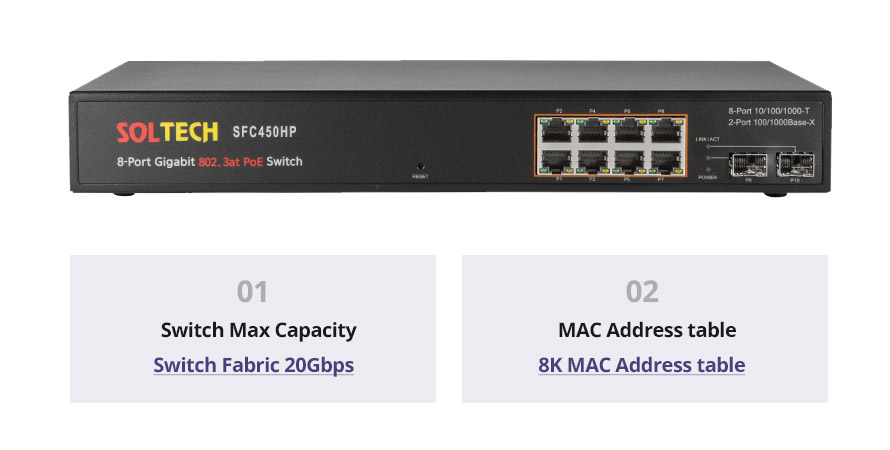

Back Plane Switch Fabric 20Gbps, 8K MAC Address table, Jumbo Frame 9.6Kbytes
Ring S-Ring Support
PoE Number of PD@15.4Watt / 8-Ports Number of PD@30.8Watt / 4-Ports
Temperature Operating : 0℃ ~ 60℃ Storage : -20℃ ~ 80℃
Humidity 5 ~ 95% (Non-condensing)
Power Supply 100 ~ 240VAC, 50/60Hz

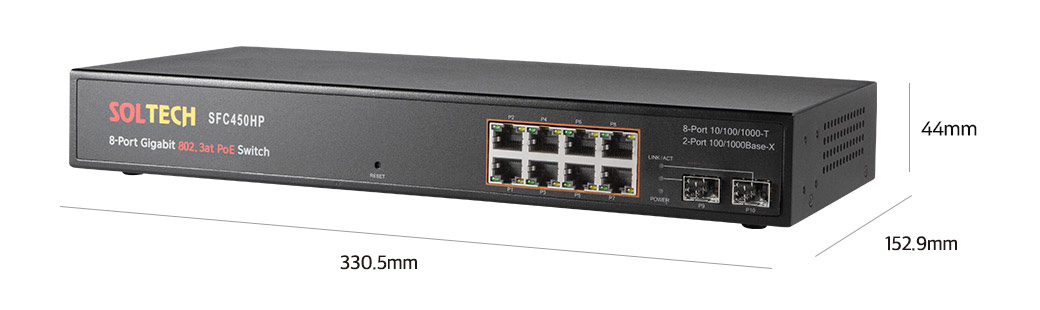

Dimension 330.5mm (W) x 153mm (D) x 44mm (H), 1U
  • S-Ring
  • 802.3 at PoE 30.8 Watt (Max. 120Watt)

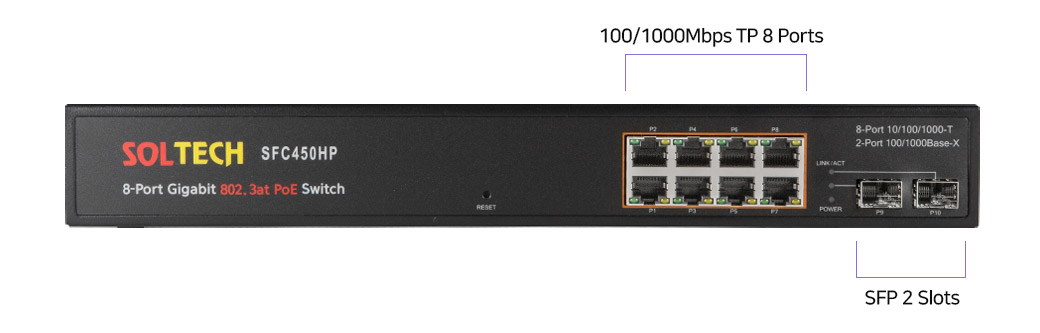

  • TP 8-Ports + SFP 2-Slots Gigabit Ethernet Switch
  • 20Gbps switch fabric, non-blocking switch architecture
  • IEEE 802.3Q Tagged based/Port Based VLAN
  • IGMP Snooping v1,v2,v3
  • SNMP Trap (Cold start, Port Link, Power status)
  • RSTP (Rapid Spanning Tree Protocol)
  • ITU-T G.8032 ERPS
  • 19”Rack mountable

    Description

    Without a separate power line POE Ethernet switch

    8 port POE Ethernet switch that provides reliable data and power supply. It provides stable power and supports web-based management, so it can be widely used such as webcam, wireless router, and CCTV.

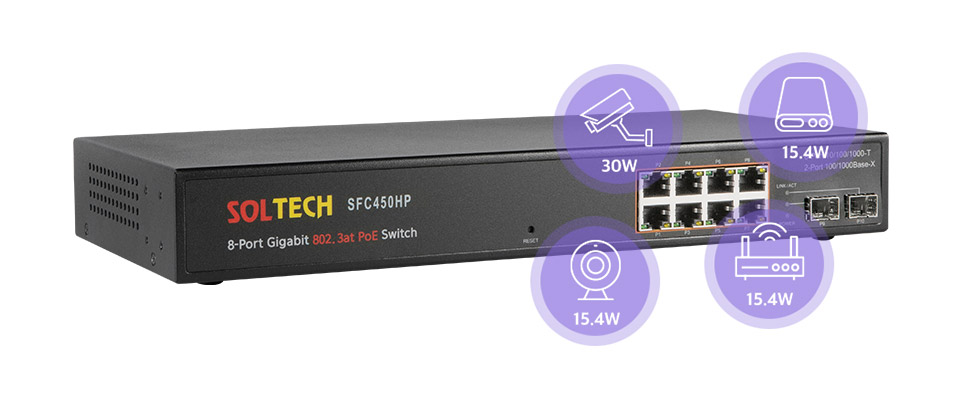

    Stable power supply for 30.8W to each ports Supports up to 120W

    The SFC450HP supports 802.3at POE 30.8 Watts, supports 30.8W per ports when 8 Ports supporting a total of 120 Watts of power. Reliable power supply is possible even if you use 8 ports simultaneously.

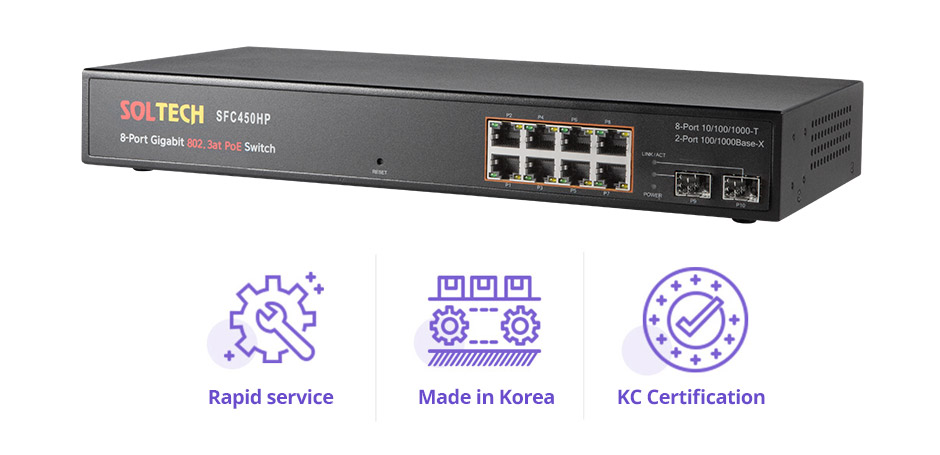

    Quality verification completed 100% Made in Korea

    100% Korea manufactured Ethernet switch. We have inspected all the processes from production to delivery, so please use it with confidence.

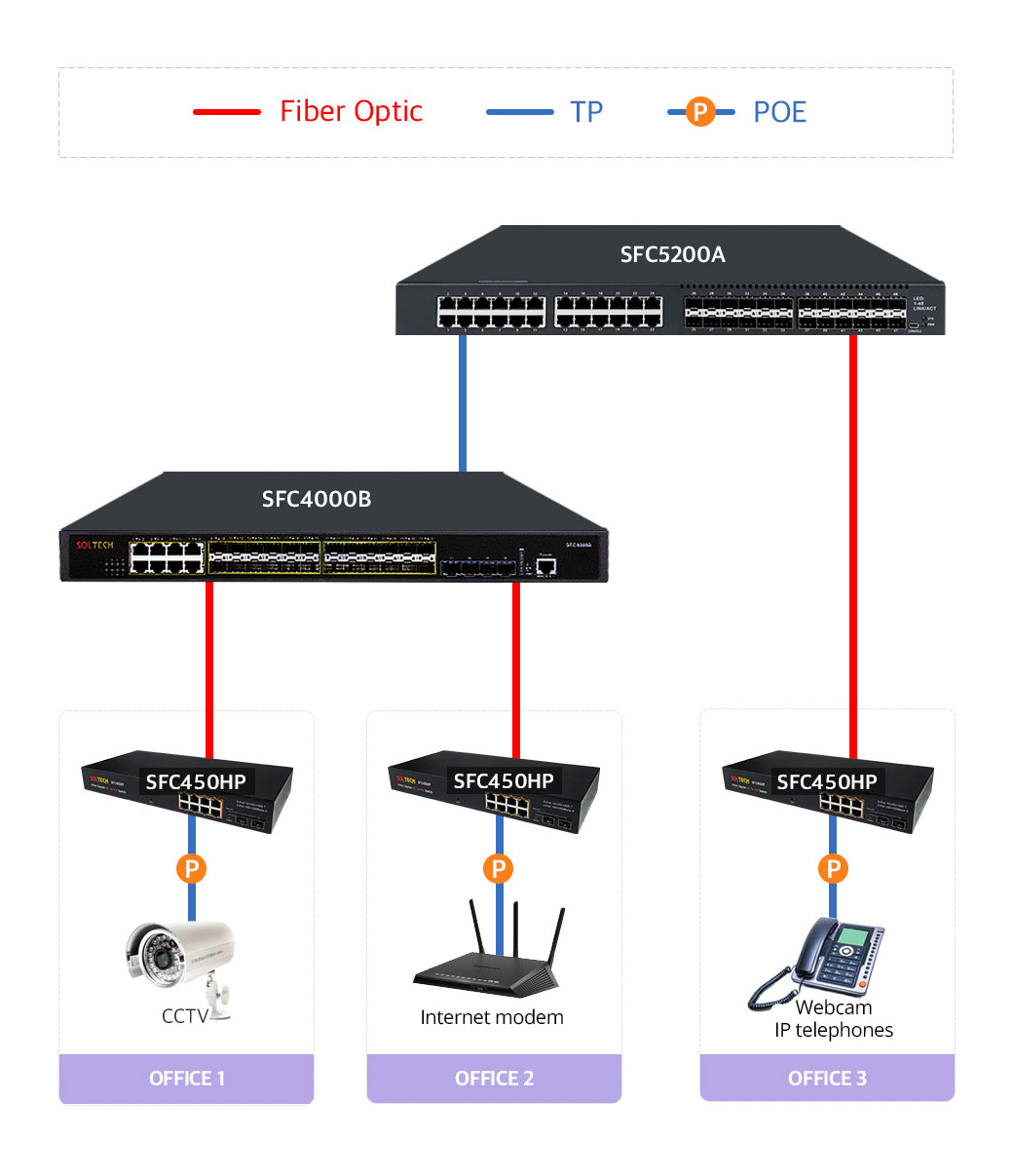

    Build network equipment based on-site environments

    Various equipment such as CCTV, Webcam, Internet modem, IP telephones can be installed for various field environments.

    Product Details

    Construction

    Dimensions

    Compare Product Lines



    SFC400GM SFC420GM SFC400HP SFC4000HP SFC4000T SFC450R SFC450HP SFC4500T SFC4500HP
    RJ45Port 8 TP(1Gbps) 8 TP(1Gbps) 8 TP(1Gbps) 24 TP(1Gbps) 24 TP(1Gbps) 8 TP(1Gbps) 8 TP(1Gbps) 24 TP(1Gbps) 24 TP(1Gbps)
    PoE Port – – 8 PoE(af/at) 24 PoE(af/at) – – 8 PoE(af/at) – 24 PoE(af/at)
    Combo Port – – – 2 Port(23,24) – – – 2 Port(23,24) 2 Port(23,24)
    SFP/SFP+ Port 2 SFP(1Gbps) 2 SFP(1Gbps) 2 SFP(1Gbps) 4 SFP(1Gbps) 4 SFP(1Gbps) 2 SFP(1Gbps) 2 SFP(1Gbps) 4 SFP(1Gbps) 4 SFP(1Gbps)
    Switch Fabric 20Gbps 20Gbps 20Gbps 52Gbps 56Gbps 20Gbps 20Gbps 52Gbps 52Gbps
    Throughput 14.8Mpps 14.8Mpps 14.8Mpps 36.68Mpps 41.6Mpps 14.8Mpps 14.8Mpps 38.68Mpps 38.68Mpps
    Memory(RAM) 128MB 128MB 128MB 128MB 128MB 128MB 128MB 128MB 128MB
    Flash Memory 16MB 16MB 16MB 16MB 16MB 16MB 16MB 16MB 16MB
    MAC Table 8K 8K 8K 8K 8K 8K 8K 8K 8K
    Jumbo Frame 9.6K 9K 9.6K 9.6K 9K 9.6K 9.6K 9.6K 9.6K
    Operating Temperature 0 ~ 60℃ 0 ~ 50℃ 0 ~ 60℃ 0 ~ 60℃ 0 ~ 50℃ 0 ~ 60℃ 0 ~ 60℃ 0 ~ 60℃ 0 ~ 60℃
    Power Input AC 100 ~ 240V AC 100 ~ 240V AC 100 ~ 240V AC 100 ~ 240V AC 100 ~ 240V AC 100 ~ 240V AC 100 ~ 240V AC 100 ~ 240V AC 100 ~ 240V
    Power Consumption AC 7.6W AC 10W AC 130W AC 441W AC 25W AC 7.6W AC 130W AC 36W AC 441.1W
    PoE Capacity – – PoE Max. 120W PoE Max. 380W – – PoE Max. 120W – PoE Max. 380W
    Installation Method Rack Mount Rack Mount Rack Mount Rack Mount Rack Mount Rack Mount Rack Mount Rack Mount Rack Mount
    Dimension (WxDxH) 217 x 155 x 44 (mm) 280 x 180 x 44 (mm) 331 x 153 x 44 (mm) 439.5 x 300 x 44 (mm) 440 x 230 x 45 (mm) 217 x 155 x 44 (mm) 331 x 153 x 44 (mm) 439 x 300 x 44 (mm) 439 x 300 x 44 (mm)
    STP/RSTP/MSTP
    802.1Q VLAN
    IEEE 802.1
    IGMP Snooping
    ERPS, S-RING
