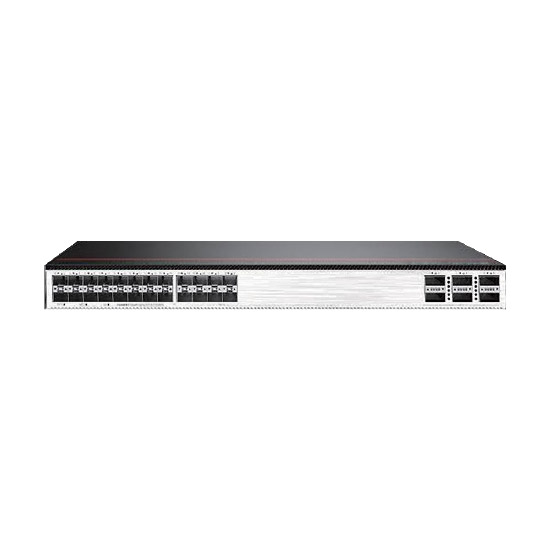

SFC9300A – Ethernet Optical Switch
Fully featured, all-around 2 MP surveillance
✓
Chính hãng 100%
⚙
Bảo hành chính hãng
⏱
Hỗ trợ 24/7
| tandards | IEEE 802.1D MAC Bridge IEEE 802.1p Traffic Quality (QoS) IEEE 802.1Q Virtual Bridge LAN IEEE 802.1ad Provider Bridge IEEE 802.2 Logical Link Control IEEE 802.3 CSMA/CD IEEE Std 802.3ax/IEEE Std 802.3ad LACP IEEE Std 802.3ae 10GE WEN/LAN Standards IEEE Std 802.3x Full Duplex and Flow Control IEEE Std 802.3z Gigabit Ethernet standard IEEE 802.3ah Ethernet(First Mile) IEEE 802.1ag Connection Fault Management IEEE 802.1ab Link Layer Search IEEE 802.1D STP IEEE 802.1w RSTP IEEE 802.1s MSTP IEEE 802.1x Port-based access control |
|---|---|
| Fiber Ports | 20 x GE SFP, 4 x 10GE SFP+, 6 x 40GE QSFP+ |
| LED Indicators | LED indicators for monitoring power, link/activity |
| Performance | Switching capacity : 600 Gbps Forwarding performance : 446.4 Mpps Memory (RAM) : 4 GB Flash memory : 2 GB |
| Temperature | Operation: -5℃ ~ 45℃ Storage: -40℃ ~ 70℃ |
| Humidity | 5 ~ 95% (Non-condensing) |
| Input Power | AC 100 VAC to 240 VAC, 50/60 Hz (1+1 redundancy) |
| Dimensions | 442mm (W) x 420mm (D) x 43.6mm (H), Aluminum Case, IP30 Support |
Compare Product Lines
| SFC9448A | SFC9348A | SFC9300A | |
|---|---|---|---|
| SFP/SFP+ Port | 48 SFP(10Gbps) | 44 SFP(1Gbps) 4 SFP(10Gbps) | 20 SFP(1Gbps) 4 SFP(10Gbps) |
| PoE Port | - | - | - |
| 40G/100G Port | 6 QSFP28(40Gbps) licences upgrade (100Gbps) | 6 QSFP(40Gbps) | 6 QSFP(40Gbps) |
| Switch Fabric | 2.4Tbps | 648Gbps | 600Gbps |
| Throughtput | 1620Mpps | 486Mpps | 450Mpps |
| Memory(RAM) | 4GB | 4GB | 4GB |
| Flash Memory | 2GB | 2GB | 2GB |
| MAC Table | 384K | 128K | 128K |
| Jumbo Frame | 10K | 10K | 10K |
| Power Input | AC 100 ~ 240V | AC 100 ~ 240V | AC 100 ~ 240V |
| Minimum/Maximum Power | 97W / 274W | 90W / 255W | 88W / 229W |
| Dual Power |  |
|
|
| Installation Method | Rack Mount | Rack Mount | Rack Mount |
| Dimension (WxDxH) | 442 x 420 x 43.6 (mm) | 442 x 420 x 43.6 (mm) | 442 x 420 x 43.6 (mm) |
| STP/RSTP/MSTP 802.1Q VLAN IEEE 802.1 IGMP Snooping 802.3ad LACP | |
|
|
| ERPS | |
|
|
- Flexible Ethernet Network Configuration (G.8032 ERPS, STP/RSTP/MSTP)
- Multiple security controls (IEEE802.1x, MAC Certification)
- Easy operation and maintenance (CLI, SSH2, SNMP v1/v2/v3, Web)
- Various VLAN features (port/protocol/IP subnet)
- Various Routing (RIP/OSPF/BGP/IS-IS/PBR/PIM)
- Stacking (Logical management, bandwidth expansion)
- Network Traffic Analysis(Mirroring, sflow)
