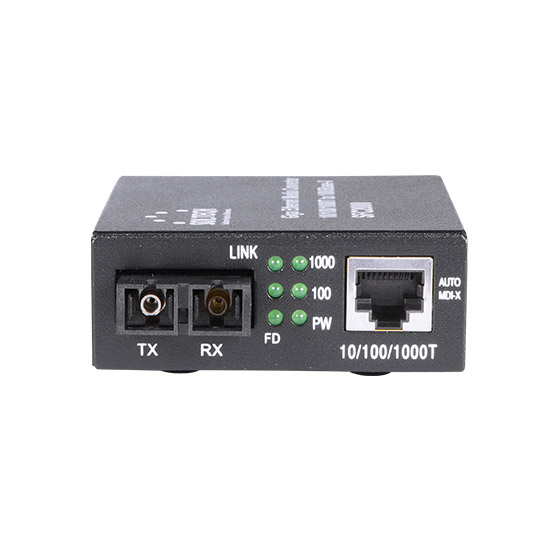

SOLTECH SFC2000-TL20 Gigabit Optical Converte
Switch Soltech

SOLTECH SFC2000-TL20 Gigabit Optical Converte

✓ Chính hãng 100%
⚙ Bảo hành chính hãng
⏱ Hỗ trợ 24/7
Yêu cầu báo giá 0978 994 988
Standards IEEE 802.3 10Base-T IEEE 802.3U 100Base-TX IEEE 802.3ab 1000Base-T IEEE 802.3z1000Base-SX/LX
RJ45 Ports 1-Port 10/100/1000Mbps Auto MDI/MDI-X TP/STP Cat, 3, 4, 5, 6 Cable ELA/TIA-568 100-ohm(100m)
Fiber Ports 1-Port 1000Mbps 1000Base-LX 1310nm SC connector Single-mode : 9/125㎛, 20km
LED Indicators Per unit : Power TX Port (Link/Act, FDX/HDX, 1000, 100) FX Port (Link/Act)
Data transfer 1000Mbps
Temperature Operation : 0℃ ~ 60℃ Storage : - 20℃ ~ 80℃
Humidity 5 ~ 95% (Non-condensing)
Power consumption SFC2000-TL : 5.3W
Installation Stand alone
Input Voltage DC 12V 1,5A SMPS Adapter
Dimensions 71mm(W) x 94mm(D) x 26mm(H)
  • Converts TP (10/100/1000Mbps) to Fiber Optic (1000Mbps-LX) for Long distance Transmission
  • Network Component for Long distance & Noise Solution, Optical LAN, FA, Internet Network, FTTH etc.
  • LED Indication for Auto Negotiation and Connection Status
  • 10/100/1000Mbps Throughput, Auto Negotiation
  • TP Cable Auto MDI-X

    Description

    Stable long-distance communication Gigabit optical converter
    1Gbps TP 1 Port + 1Gbps Fiber 1 Port, Single mode, 20km, 1310nm, SC Connector, Standalone

    Applies RJ-45 connector for 10/100/1000BASE-T UTP connections and an SC type connector for optical cables connections. Reliable transmission of large bandwidth and long distances over Giga Ethernet networks and required for optical and UTP cable connections.

    Quality verificated 100% Made In Korea

    SFC2000-TL20 is a Made in Korea optical converter with reliable internal materials. Check all processes from production to delivery and use them with confidence.

    Build network equipment based on-site environments

    Various equipment such as CCTV, Webcam, Internet modem, IP telephones can be installed for various field environments.

    Product Details

    Dimensions

    From one to several Various ways of installations are available.

    *Bracket must be purchased separately.

    Compare Product Lines

    SFC2000-SL/SFP SFC2000HP SFC2000-TL20 SFC2000-TL20/M SFC2000-TL20/I SFC2000-TL40 SFC2000-TL40/M SFC2000-TL40/I SFC2000-TS SFC2000-TS/M SFC2000-TS/I SFC2000-TWLA20 SFC2000-TWLB20 SFC2000-TWLA20/M SFC2000-TWLB20/M SFC2000-TWLA20/I SFC2000-TWLB20/I
    RJ45Port – 1 TP(1Gbps) 1 TP(1Gbps) 1 TP(1Gbps) 1 TP(1Gbps) 1 TP(1Gbps) 1 TP(1Gbps) 1 TP(1Gbps) 1 TP(1Gbps) 1 TP(1Gbps) 1 TP(1Gbps) 1 TP(1Gbps) 1 TP(1Gbps) 1 TP(1Gbps) 1 TP(1Gbps) 1 TP(1Gbps) 1 TP(1Gbps)
    SFP/SFP+ Port 2 SFP(1Gbps) 1 SFP(1Gbps) 1 SC(1Gbps) 1 SC(1Gbps) 1 SC(1Gbps) 1 SC(1Gbps) 1 SC(1Gbps) 1 SC(1Gbps) 1 SC(1Gbps) 1 SC(1Gbps) 1 SC(1Gbps) 1 SC(1Gbps) 1 SC(1Gbps) 1 SC(1Gbps) 1 SC(1Gbps) 1 SC(1Gbps) 1 SC(1Gbps)
    Fiber Mode – – Single-mode Single-mode Single-mode Single-mode Single-mode Single-mode Multi-mode Multi-mode Multi-mode Single-mode Single-mode Single-mode Single-mode Single-mode Single-mode
    Transmission Distance – – 20km 20km 20km 40km 40km 40km 220m 220m 220m 20km 20km 20km 20km 20km 20km
    Wavelength – – 1310nm 1310nm 1310nm 1310nm 1310nm 1310nm 1310nm 1310nm 1310nm 1550/1310nm 1310/1550nm 1550/1310nm 1310/1550nm 1550/1310nm 1310/1550nm
    Operating Temperature 0 ~ 60℃ 0 ~ 60℃ 0 ~ 60℃ 0 ~ 60℃ 0 ~ 60℃ 0 ~ 60℃ 0 ~ 60℃ 0 ~ 60℃ 0 ~ 60℃ 0 ~ 60℃ 0 ~ 60℃ 0 ~ 60℃ 0 ~ 60℃ 0 ~ 60℃ 0 ~ 60℃ 0 ~ 60℃ 0 ~ 60℃
    Power Input AC 0.5W AC 1W DC 12V DC 12V AC 220V DC 12V DC 12V AC 220V DC 12V DC 12V AC 220V DC 12V DC 12V DC 12V DC 12V AC 220V AC 220V
    Power Consumption AC 2W AC 40.5W AC 2.9W AC 2.9W AC 3.55W AC 2.9W AC 2.9W AC 3.55W AC 5.3W AC 5.3W AC 3.55W AC 5.3W AC 5.3W AC 5.3W AC 5.3W AC 3.55W AC 3.55W
    PoE Capacity – PoE Max. 24W – – – – – – – – – – – – – – –
    Installation Method Wall Mount Wall Mount Wall Mount Wall Mount Wall Mount Wall Mount Wall Mount Wall Mount Wall Mount Wall Mount Wall Mount Wall Mount Wall Mount Wall Mount Wall Mount Wall Mount Wall Mount
    Dimension(WxDxH) 71x93x26(mm) 70x95x26(mm) 71x94x26(mm) 71x94x26(mm) 118x184x34(mm) 71x94x26(mm) 71x94x26(mm) 71x94x26(mm) 71x94x26(mm) 71x94x26(mm) 118x184x34(mm) 71x94x26(mm) 71x94x26(mm) 71x94x26(mm) 71x94x26(mm) 118x184x34(mm) 118x184x34(mm)
