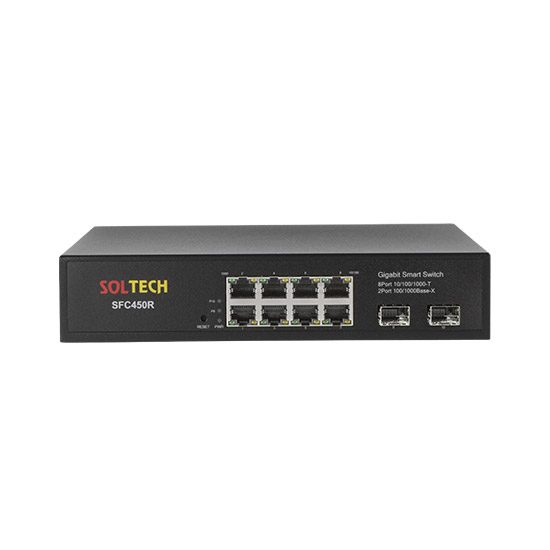

Bộ chuyển mạch Ethernet sợi quang SFC450R
Switch Soltech

Bộ chuyển mạch Ethernet sợi quang SFC450R

Fully featured, all-around 2 MP surveillance
✓ Chính hãng 100%
⚙ Bảo hành chính hãng
⏱ Hỗ trợ 24/7
Yêu cầu báo giá 0978 994 988
Standards IEEE 802.3 10Base-T Ethernet IEEE 802.3u 100Base-TX Fast Ethernet IEEE 802.3ab 1000Base-T IEEE 802.3ad Port trunk with LACP IEEE 802.1Q VLAN Tagging IEEE 802.1w Rapid Spanning Tree IEEE 802.1x Port Authentication Network Control IEEE 802.3z Gigabit SX/LX IEEE 802.1p Class of Service IEEE 802.3x Flow Control and Back Pressure IEEE 802.1d Spanning Tree
RJ45 Ports 10/100/1000Mbps TP 8-Port TP/STP Cat. 3,4,5 Cable EIA/TIA-568 100-ohm(100m)
Fiber Ports 100/1000Mbps SFP 2-Slot Multi mode : 62.5/125㎛ (220m) Single mode : 9/125㎛ (~ 100km)
LED Indication Power, 1000Mbps Link/Act, 100/10 Link/Act per port
Back Plane Switch Fabric 20Gbps 8K MAC Address table Jumbo Frame 9.6Kbytes
RING S-Ring Support
Layer 2 Management Interfaces : Web Browser, SNMPv1, v2c monitor and SNMP Trap VLAN : Port-Based / 802.1Q Tagged Based VLAN Up to 64 VLAN groups Link Aggregation : Supports 4 groups of 8-Port trunk IEEE 802.3ad LACP IGMP Snooping : IGMP(v1/v2) Snooping, up to 64 multicast Groups
Temperature Operating : 0℃ ~ 70℃ Storage : - 20℃ ~ 80℃
Humidity 5 ~ 95% (Non-condensing)
Power Supply 100 ~ 240VAC, 50/60Hz, Power Consumption 8.8W
Dimensions 217mm (W) x 135mm (D) x 43.5mm (H)
  • S-Ring support
  • TP 8-Port + SFP 2-Slot gigabit ethernet switch
  • 20Gbps switch fabric, non-blocking switch architecture
  • IEEE 802.3Q Tagged based/Port Based VLAN
  • IGMP Snooping v1,v2,v3 support
  • IEEE 802.1x User Authentication for Network Security
  • Port Mirroring for Analysis of Network Errors and Traffics
  • MAC-based 802.3ad LACP based Link Fail-over Automatic
  • RSTP (Rapid Spanning Tree Protocol)
  • 19”Rack mountable

    Compare Product Lines

    SFC400GM SFC420GM SFC400HP SFC4000HP SFC4000T SFC450R SFC450HP SFC4500T SFC4500HP
    RJ45Port 8 TP(1Gbps) 8 TP(1Gbps) 8 TP(1Gbps) 24 TP(1Gbps) 24 TP(1Gbps) 8 TP(1Gbps) 8 TP(1Gbps) 24 TP(1Gbps) 24 TP(1Gbps)
    PoE Port – – 8 PoE(af/at) 24 PoE(af/at) – – 8 PoE(af/at) – 24 PoE(af/at)
    Combo Port – – – 2 Port(23,24) – – – 2 Port(23,24) 2 Port(23,24)
    SFP/SFP+ Port 2 SFP(1Gbps) 2 SFP(1Gbps) 2 SFP(1Gbps) 4 SFP(1Gbps) 4 SFP(1Gbps) 2 SFP(1Gbps) 2 SFP(1Gbps) 4 SFP(1Gbps) 4 SFP(1Gbps)
    Switch Fabric 20Gbps 20Gbps 20Gbps 52Gbps 56Gbps 20Gbps 20Gbps 52Gbps 52Gbps
    Throughput 14.8Mpps 14.8Mpps 14.8Mpps 36.68Mpps 41.6Mpps 14.8Mpps 14.8Mpps 38.68Mpps 38.68Mpps
    Memory(RAM) 128MB 128MB 128MB 128MB 128MB 128MB 128MB 128MB 128MB
    Flash Memory 16MB 16MB 16MB 16MB 16MB 16MB 16MB 16MB 16MB
    MAC Table 8K 8K 8K 8K 8K 8K 8K 8K 8K
    Jumbo Frame 9.6K 9K 9.6K 9.6K 9K 9.6K 9.6K 9.6K 9.6K
    Operating Temperature 0 ~ 60℃ 0 ~ 50℃ 0 ~ 60℃ 0 ~ 60℃ 0 ~ 50℃ 0 ~ 60℃ 0 ~ 60℃ 0 ~ 60℃ 0 ~ 60℃
    Power Input AC 100 ~ 240V AC 100 ~ 240V AC 100 ~ 240V AC 100 ~ 240V AC 100 ~ 240V AC 100 ~ 240V AC 100 ~ 240V AC 100 ~ 240V AC 100 ~ 240V
    Power Consumption AC 7.6W AC 10W AC 130W AC 441W AC 25W AC 7.6W AC 130W AC 36W AC 441.1W
    PoE Capacity – – PoE Max. 120W PoE Max. 380W – – PoE Max. 120W – PoE Max. 380W
    Installation Method Rack Mount Rack Mount Rack Mount Rack Mount Rack Mount Rack Mount Rack Mount Rack Mount Rack Mount
    Dimension (WxDxH) 217 x 155 x 44 (mm) 280 x 180 x 44 (mm) 331 x 153 x 44 (mm) 439.5 x 300 x 44 (mm) 440 x 230 x 45 (mm) 217 x 155 x 44 (mm) 331 x 153 x 44 (mm) 439 x 300 x 44 (mm) 439 x 300 x 44 (mm)
    STP/RSTP/MSTP
    802.1Q VLAN
    IEEE 802.1
    IGMP Snooping
    ERPS, S-RING
