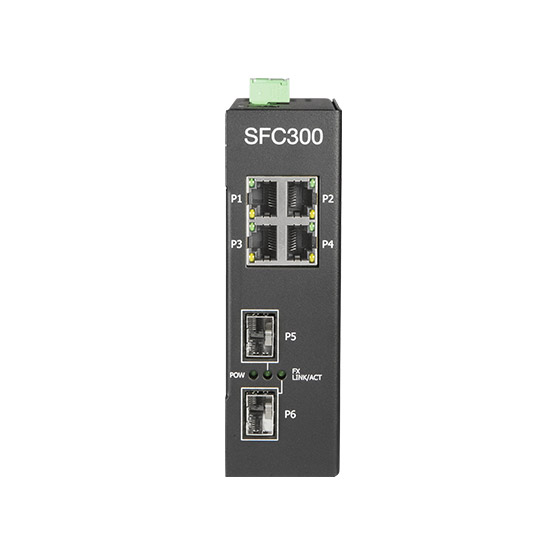

Bộ chuyển mạch công nghiệp Unmanaged SFC300-SFP
✓
Chính hãng 100%
⚙
Bảo hành chính hãng
⏱
Hỗ trợ 24/7
| Standards | IEEE 802.3 10Base-T Ethernet IEEE 802.3u 100Base-TX/100Base-FX |
|---|---|
| RJ45 Ports | 10/100Mbps TP 4Ports Auto MDI/MDI-X TP/STP Cat. 3, 4, 5, 6 Cable EIA/TIA-568 100-ohm (100m) |
| Fiber Port | 100Mbps-FX, SFP 2Slots Multi Mode : 62.5/125㎛ (2km) Single Mode : 9/125㎛ (~ 100km) |
| LED Indication | Per unit: Power, Fault TX Port (Link/Act, FDX/HDX, Speed), FX Port (Link/Act, FDX/HDX, Speed) |
| Transmission speed | 100Mbps |
| Mac Address | 2K MAC Address table |
| Temperature | Operating : 0℃ ~ 60℃ Storage : -20℃ ~ 80℃ |
| Humidity | 5 ~ 95% (Non-condensing) |
| Input Power | DC 12 ~ 56V |
| Dimension | 55mm(W) x 120mm(D) x 150mm(H) |
- Small Size
- 1000Mbps optical switch/optical converter specialized for business sites
- Supports DIN-Rail installation
- Built-in power polarity protection circuit
- DC12~48V (Terminal Block) Power Supply Method
- TP Port AUTO MDI/MDI-X function
- DIP Switch : 10/100Mbps, Full/Half Duplex, LLCF on/off
- 2K MAX Address Table
Description
Industrial ethernet switch that can withstand extreme environmentsIndustrial ethernet switch that can endure severe environment allowing to provide high maintenance. speed reliable network to rough industrial field smart city, factory, plants, apartment and buildings. Web-based management allows the user to have convenient managing of switch.
Quality verificated 100% Made In KoreaSFC300-SFP is a Made in Korea optical converter with reliable internal materials. Check all processes from production to delivery and use them with confidence.
100Mbps TP 4 Ports, 100Mbps 2 SFP Slots switchVarious equipment such as CCTV, Webcam, Internet modem, IP telephones can be installed for various field environments.
Product Details
Construction
Dimensions
Compare Product Lines
SFC300T SFC300-SCS SFC300-SCS2 SFC300-SCM SFC300-SCM2 SFC300-PoE SFC300-SFP SFC300GS SFC310C RJ45Port 4 TP(100Mbps) 4 TP(100Mbps) 4 TP(100Mbps) 4 TP(100Mbps) 4 TP(100Mbps) 4 TP(100Mbps) 4 TP(100Mbps) 2 TP(1Gbps) 1 TP(1Gbps) SFP/SFP+ Port – 1 SC(100Mbps) 2 SC(100Mbps) 1 SC(100Mbps) 2 SC(100Mbps) 2 SFP(100Mbps) 2 SFP(100Mbps) 2 SFP(1Gbps) 1 SFP(1Gbps) Switch Fabric 0.8Gbps 1Gbps 1.2Gbps 1Gbps 1.2Gbps 1.2Gbps 1.2Gbps 8Gbps 4Gbps Throughtput 0.6Mpps 0.7Mpps 0.9Mpps 0.7Mpps 0.9Mpps 0.9Mpps 0.9Mpps 5.9Mpps – MAC Table 1K 1K 1K 1K 1K 1K 1K 4K 2K Jumbo Frame – – – – – – – 9K 9K Operating Temperature -40 ~ 80℃ -40 ~ 80℃ -40 ~ 80℃ -40 ~ 80℃ -40 ~ 80℃ -40 ~ 80℃ -40 ~ 80℃ -40 ~ 80℃ -40 ~ 80℃ Power Input DC 12 ~ 56V DC 12 ~ 56V DC 12 ~ 56V DC 12 ~ 56V DC 12 ~ 56V DC 48 ~ 56V DC 12 ~ 56V DC 12 ~ 56V DC 12 ~ 56V Power Consumption AC 3.7W AC 4.2W AC 4.3W AC 4.2W AC 4.3W AC 65W AC 5.3W AC 4.2W AC 2.1W PoE Capacity – – – – – PoE Max. 60W – – Installation Method DinRail Mount DinRail Mount DinRail Mount DinRail Mount DinRail Mount DinRail Mount DinRail Mount DinRail Mount DinRail Mount Dimension (WxDxH) 42 x 87 x 112 (mm) 42 x 87 x 112 (mm) 42 x 87 x 112 (mm) 42 x 87 x 112 (mm) 42 x 87 x 112 (mm) 41 x 103 x 133 (mm) 41 x 103 x 133 (mm) 39 x 107 x 97 (mm) 33 x 77 x 110 (mm)
