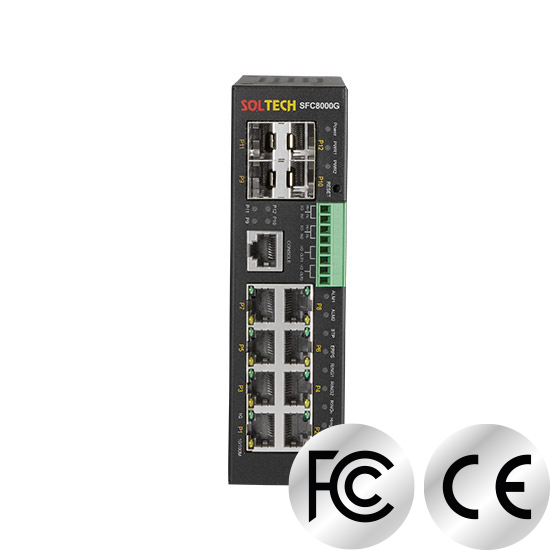

Switch SOLTECH 8-Ports 1000Mbps TP SFC8000G
✓
Chính hãng 100%
⚙
Bảo hành chính hãng
⏱
Hỗ trợ 24/7
| Standards | IEEE 802.3/3u/3ab/3z 10Base-T / 100Base-TX and 100Base-FX / 1000Base-T / Gigabit Fiber IEEE 802.1w Rapid spanning tree protocol IEEE 802.1Q VLAN Tagging IEEE 802.3ad LACP |
|---|---|
| RJ45 Ports | 8-Ports 10/100/1000Base-T(X) Auto MDI/MDI-X UTP/STP Cat. 3, 4, 5, 6 Cable EIA/TIA-568 100-ohm(100m) |
| Fiber Ports | 100/1000Base SFP Slot 100/1000/2.5Gbps SFP Slot Multi mode : 50/125㎛, 62.5/125㎛, Single mode : 9/125㎛ |
| LED Indicators | Per unit : Power, Power Input 1, Power Input2, Fault/Alarm, Ring Master 1000Base-T Port : Speed (1000Mbps Yellow), Link/Activity (Green) Mini-GBIC : Link/Activity (Green) |
| I/O Device | 2 Input, 2 Output |
| Back Plane | Switching Fabric 30Gbps |
| MAC Address | 8K MAC Address table |
| Installation Method | Panel mounting |
| Temperature | Operating : -40℃ ~ 80℃ Storage : -40℃ ~ 85℃ |
| Humidity | 5 ~ 95% (Non-condensing) |
| Power Supply | DC 12V~54V, Dual Power, Polarity Protection Circuit |
| Dimensions | 153.8mm(W) x 151.2mm(D) x 44.4mm(H) |
- 10/100/1000-T 8-Ports + SFP 4-Slots
- SFP 2-Slots (100/1000/2.5Gbps), SFP 2-Slots (100/1000Mbps)
- ARP Inspection, DHCP Snooping, IP Source Guard support
- STP (IEEE 802.1D) / RSTP (IEEE 802.1w) / MSTP (IEEE 802.1Q)
- Carrier Ethernet (ERPS)
- S-Ring, Dual Ring
- IPv4/IPv6
- IPMC support (IGMP/MLD)
- Auto Scan Manager Program (Scan, IP Setting)
Description
Industrial Ethernet optical switch that can withstand extreme environmentsIndustrial fiber optic ethernet switch that can endure severe environment allowing to provide high speed reliable network to rough industrial field smart city, factory, plants, apartment and buildings. Web-based management allows the user to have convenient maintenance.
2-slot of SFP 100/1000/2.5Gbps without interruptionImplements the best performance network environment by providing the perfect interoperability with various network equipment such as the routers and switches.
Fast recovery time S-RING protocolWith SOLTECH’s high technical background, we developed our own ring protocol called S-RING. S-RING allows optimized network with high speed recovery time during the failure, and the user convenience by easy setting.
Product Details
Construction
Dimensions
-
Din-rail mount
-
SFC8000G with bracket
*Bracket is not included in the offer
Compare Product Lines
SFC8000 SFC8000HP SFC8000G SFC8000GHP SFC8000BP SFC8000S RJ45Port 8 TP(1Gbps) 8 TP(1Gbps) 8 TP(1Gbps) 8 TP(1Gbps) 8 TP(1Gbps) 4 TP(1Gbps) PoE Port – 8 PoE(af/at) – 8 PoE(af/at) – – SFP/SFP+ Port 2 SFP(2.5Gbps) 2 SFP(2.5Gbps) 2 SFP(1Gbps)
2 SFP(2.5Gbps)2 SFP(1Gbps)
2 SFP(2.5Gbps)2 SFP(1Gbps)
2 SFP(2.5Gbps)2 SFP(2.5Gbps) BYPASS – – – –
– Switch Fabric 26Gbps 26Gbps 30Gbps 30Gbps 30Gbps 18Gbps Throughput 19.3Mpps 19.3Mpps 22.3Mpps 22.3Mpps 22.3Mpps 13.3Mpps Memory(RAM) 128MB 128MB 128MB 128MB 128MB 128MB Flash Memory 16MB 16MB 16MB 16MB 16MB 16MB MAC Table 8K 8K 8K 8K 8K 8K Jumbo Frame 9.6K 9.6K 9.6K 9.6K 9.6K 9.6K Power Input DC 12 ~ 56V DC 48 ~ 56V DC 12 ~ 56V DC 48 ~ 56V AC 100 ~ 240V DC 12 ~ 56V Power Consumption AC 10.6W AC 260W AC 12.3W AC 262W AC 12.5W AC 7.6W PoE Capacity – PoE Max. 240W – PoE Max. 240W – – Dual Power Installation Method Wall or DinRail Wall or DinRail Wall Mount Wall or DinRail Rack Mount DinRail Mount Dimension(WxDxH) 62 x 111 x 158 (mm) 62 x 111 x 158 (mm) 151 x 154 x 44 (mm) 62 x 111 x 158 (mm) 266 x 184 x 88 (mm) 41 x 106 x 112 (mm) STP/RSTP/MSTP
802.1Q VLAN
IEEE 802.1
IGMP SnoopingERPS, S-RING -
