Bộ chuyển đổi quang Ethernet công nghiệp SFC310C

✓ Chính hãng 100%
⚙ Bảo hành chính hãng
⏱ Hỗ trợ 24/7
Yêu cầu báo giá 0978 994 988
Interface SFP 1-Slot (100/1000Mbps), UTP 1Port(10/100/1000Mbps)
Jumbo Frame 9216 byte
Switch Fabric 4Gbps
Throughput 2976Mbps
Perfomance Supports Flow control Fiber 100/1000Mbps Dip-Switch manual settings
Power Supply AC/DC Adapter : DC 12V ~ 56V
Temperature Operation: -40℃ ~ 80℃
Dimensions 33.2mm(W) x 76.6mm(D) x 109.8mm(H)
  • Industrial Giga Ethernet Converter
  • 10/100/1000Mbps UTP 1port, 100/1000Mbps SFP 1port
  • Fiber 100/1000Mbps Manual Settings
  • AC/DC Adapter : DC 12V ~ 56V
  • Dimension : 33.2mm (W) x 76.6mm (D) x 109.8mm (H)

    Description

    Industrial switches that withstand extreme environments

    Industrial switch that provides networks at a rapid pace, such as barren industrial sites, smart cities, factories and power plants, and apartment sites.

    Quality verificated 100% Made In Korea

    SFC310C is a Made in Korea optical converter with reliable internal materials. Check all processes from production to delivery and use them with confidence.

    Build network equipment based on-site environments

    Various equipment such as CCTV, Webcam, Internet modem, IP telephones can be installed for various field environments.

    Product Details

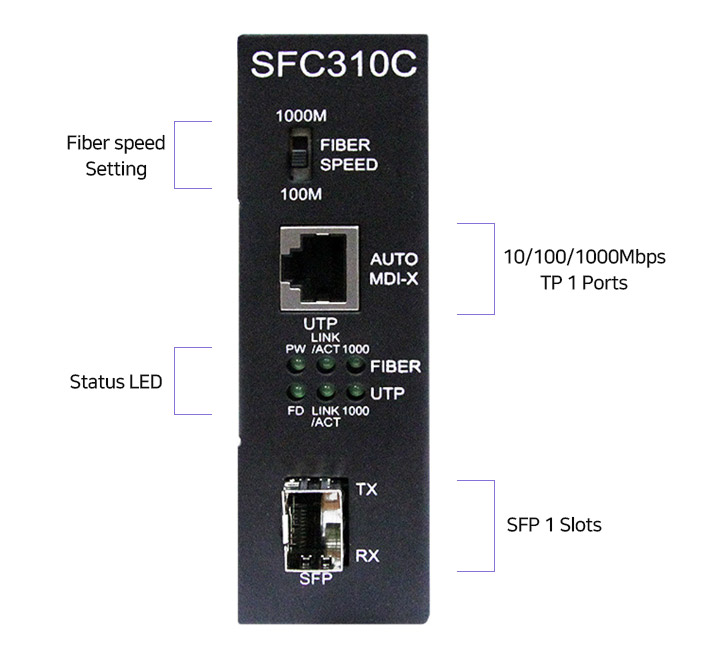

    Construction

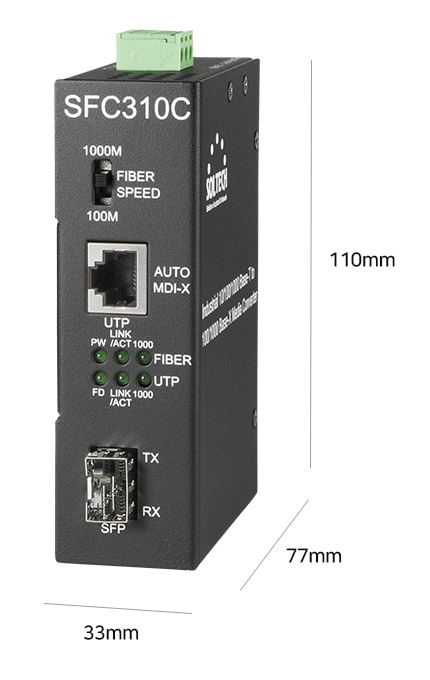

    Dimensions

    Compare Product Lines

    SFC300T SFC300-SCS SFC300-SCS2 SFC300-SCM SFC300-SCM2 SFC300-PoE SFC300-SFP SFC300GS SFC310C
    RJ45Port 4 TP(100Mbps) 4 TP(100Mbps) 4 TP(100Mbps) 4 TP(100Mbps) 4 TP(100Mbps) 4 TP(100Mbps) 4 TP(100Mbps) 2 TP(1Gbps) 1 TP(1Gbps)
    SFP/SFP+ Port – 1 SC(100Mbps) 2 SC(100Mbps) 1 SC(100Mbps) 2 SC(100Mbps) 2 SFP(100Mbps) 2 SFP(100Mbps) 2 SFP(1Gbps) 1 SFP(1Gbps)
    Switch Fabric 0.8Gbps 1Gbps 1.2Gbps 1Gbps 1.2Gbps 1.2Gbps 1.2Gbps 8Gbps 4Gbps
    Throughtput 0.6Mpps 0.7Mpps 0.9Mpps 0.7Mpps 0.9Mpps 0.9Mpps 0.9Mpps 5.9Mpps –
    MAC Table 1K 1K 1K 1K 1K 1K 1K 4K 2K
    Jumbo Frame – – – – – – – 9K 9K
    Operating Temperature -40 ~ 80℃ -40 ~ 80℃ -40 ~ 80℃ -40 ~ 80℃ -40 ~ 80℃ -40 ~ 80℃ -40 ~ 80℃ -40 ~ 80℃ -40 ~ 80℃
    Power Input DC 12 ~ 56V DC 12 ~ 56V DC 12 ~ 56V DC 12 ~ 56V DC 12 ~ 56V DC 48 ~ 56V DC 12 ~ 56V DC 12 ~ 56V DC 12 ~ 56V
    Power Consumption AC 3.7W AC 4.2W AC 4.3W AC 4.2W AC 4.3W AC 65W AC 5.3W AC 4.2W AC 2.1W
    PoE Capacity – – – – – PoE Max. 60W – –
    Installation Method DinRail Mount DinRail Mount DinRail Mount DinRail Mount DinRail Mount DinRail Mount DinRail Mount DinRail Mount DinRail Mount
    Dimension (WxDxH) 42 x 87 x 112 (mm) 42 x 87 x 112 (mm) 42 x 87 x 112 (mm) 42 x 87 x 112 (mm) 42 x 87 x 112 (mm) 41 x 103 x 133 (mm) 41 x 103 x 133 (mm) 39 x 107 x 97 (mm) 33 x 77 x 110 (mm)
