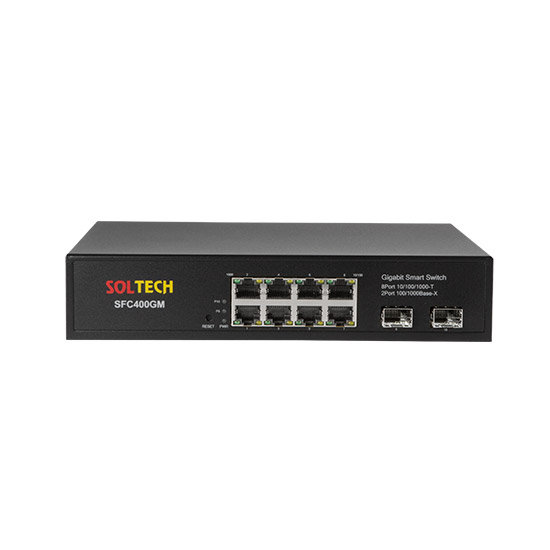

Bộ chuyển mạch Ethernet sợi quang SFC400GM
Fully featured, all-around 2 MP surveillance
✓
Chính hãng 100%
⚙
Bảo hành chính hãng
⏱
Hỗ trợ 24/7
| Standards | IEEE 802.3/3u/3ab/3z 10Base-T/ 100Base-TX and 1000Base-T/ Gigabit Fiber IEEE 802.3ad Port trunk with LACP IEEE 802.1w Rapid spanning tree protocol IEEE 802.1Q VLAN Tagging IEEE 802.1x Port Authentication Network Control |
|---|---|
| RJ45 Ports | 10/100/1000Mbps TP 8-Ports Auto-negotiation Auto MDI-X |
| Fiber Ports | SFP 2-Slots 1000Base-SX/LX SFP |
| LED Indicators | Power, 1000Mbps Link/Act 10/100Mbps Link/Act per port |
| Back Plane | Switch Fabric 20Gbps 8K MAC Address table Jumbo Frame 9.6Kbytes |
| Layer 2 | Management Interfaces : Web Browser, SNMPv1, v2c monitor and SNMP Trap VLAN : Port-Based / 802.1Q Tagged Based VLAN Up to 64 VLAN groups Link Aggregation : Supports 4 groups of 8-Port trunk IEEE 802.3ad LACP QoS : Traffic classification based on 802.1p priority, DSCP field in IP Packet IGMP Snooping : IGMP(v1/v2/v3) Snooping, up to 64 multicast Groups |
| Temperature | Operation : 0℃ ~ 60℃ Storage : -20℃ ~ 80℃ |
| Humidity | 5 ~ 95% (Non-condensing) |
| Input Voltage | 100~240VAC, 50/60Hz, Power consumption 8.8W |
| Dimensions | 217mm(W) x 155mm(D) x 44mm(H) |
-
- TP 8-Port + SFP 2-Slot Gigabit Ethernet Switch
- 20Gbps switch fabric, non-blocking switch architecture
- IEEE 802.3Q Tagged based/Port Based VLAN
- IGMP Snooping
- SNMP Trap (Cold start, Port Link, Power status)
- IEEE 802.1x User Authentication for Network Security
- Port Mirroring function for analyzing Network Error and Traffic
- Automatic Link Fail-over by Mac-based 802.3ad LACP
- RSTP (Rapid Spanning Tree Protocol)
- 19” Rack installable
