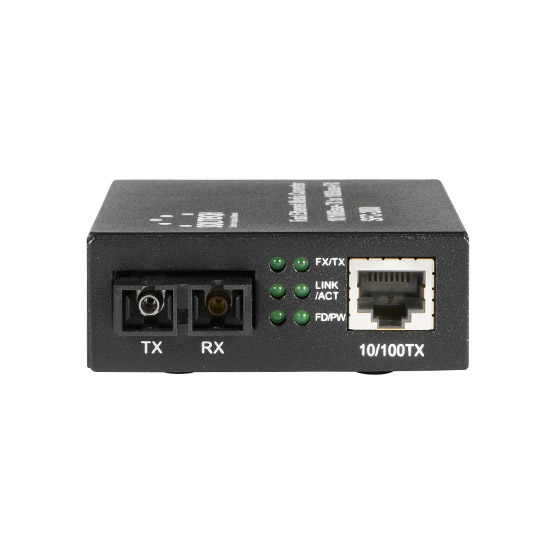

Bộ chuyển đổi Ethernet Megabit SFC200-SCM
Bộ chuyển đổi Switch Thiết Bị Mạng & Network Solutions

Bộ chuyển đổi Ethernet Megabit SFC200-SCM

  • Bộ chuyển đổi quang điện 100Mbps SOLTECH SFC200-SCM
  • 1 cổng RJ45 10/100Mbps + 1 cổng quang SC 100Mbps
  • Sử dụng cáp quang Multi-mode, bước sóng 1310nm
  • Khoảng cách truyền dẫn tối đa 2km
  • Hỗ trợ Auto-Negotiation, tự động nhận MDI/MDI-X
  • Hỗ trợ Full/Half Duplex và chức năng LLCF
  • Nguồn cấp DC 5V, công suất tối đa khoảng 2.5W
  • Thiết kế Stand Alone, kích thước nhỏ gọn 71 × 94 × 26mm
  • Phù hợp cho mạng LAN quang, hệ thống camera, nhà máy, FA và FTTH
✓ Chính hãng 100%
⚙ Bảo hành chính hãng
⏱ Hỗ trợ 24/7
Yêu cầu báo giá 0978 994 988
Standards IEEE 802.3 10Base-T IEEE 802.3u 100Base-TX/100Base-FX
RJ45 Ports 10/100Mbps TP 1 Ports Auto-Negotiation Auto MDI/MDI-X TP/STP Cat. 3, 4, 5, 6 Cable EIA/TIA-568 100-ohm (100m)
Fiber Ports 100Mbps 1Ports SC Connector Multi Mode : 62.5/125㎛ (2km)
LED Indicators Per unit : Power Per port(TX) : Link, Activity, FDX/HDX, speed Per port(FX) : Link, Activity
Data transfer 100Mbps
Temperature Operation : 0℃ ~ 60℃ Storage : -20℃ ~ 80℃
Humidity 5 ~ 95% (Non-condensing)
Installation Standalone, center mounted module type
Input Power DC 5V 2A SMPS Adapter
Dimensions 71mm(W) x 94mm(D) x 26mm(H)
  • Converts TP(10/100Mbps) to Optical (100Mbps-FX) for longdistance transmission
  • Used for network configuration for optical LAN, FA, Internet network, FTTH, etc. for long distance, noise resolution, etc.
  • 10/100Mbps Transmission speed AUTO Negotiation
  • TP Cable MDI-X Automatic sensing
  • Auto-negotiation and LED for connection status indication

    Description

    Stable long-distance communication Gigabit optical converter 100Mbps TP 1 Port + 100Mbps Fiber 1 Port, Multi mode, 2km, 1310nm, SC Connector

    Applies RJ-45 connector for 10/100BASE-TX UTP connections and an optical connector for 100BASE-FX connections. Reliable transmission of large bandwidth and long distances over Fast Ethernet networks and required for optical and UTP cable connections.

    Quality verificated 100% Made In Korea

    SFC200-SCM is a Made in Korea optical converter with reliable internal materials. Check all processes from production to delivery and use them with confidence.

    Build network equipment based on-site environments

    Various equipment such as CCTV, Webcam, Internet modem, IP telephones can be installed for various field environments.

    Product Details

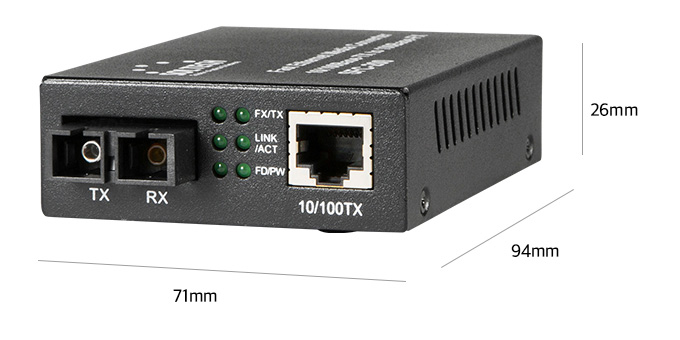

    Dimensions

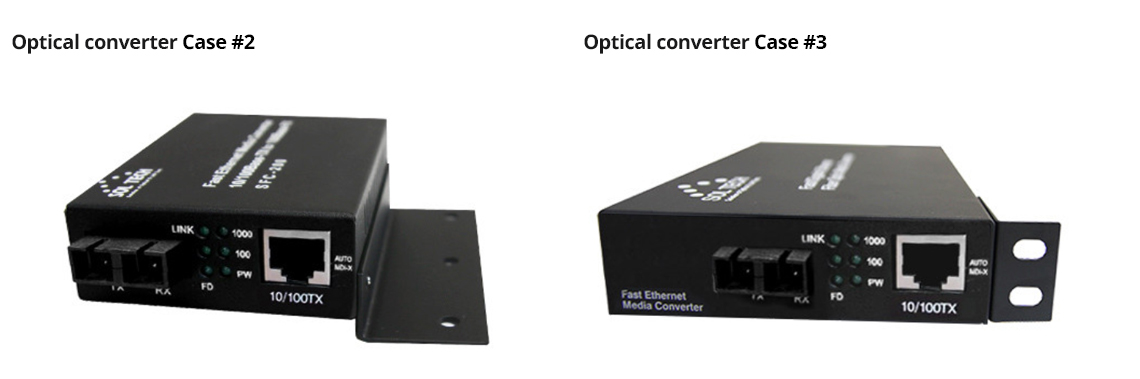

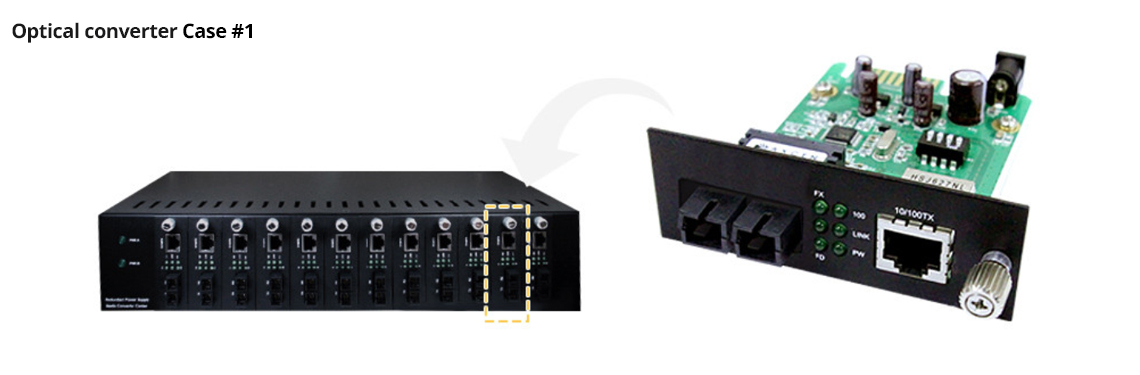

    From one to several Various ways of installations are available.

    *Bracket must be purchased separately.

    Compare Product Lines

    SFC200-SCS SFC200-SCS/M SFC200-SCS/I SFC200-SCM SFC200-SCM/M SFC200-SCM/I SFC200-STM SFC200-STM/M SFC200-STM/I SFC200-SCS40 SFC200-SCS40/M SFC200-SCS40/I SFC200-SCSWA SFC200-SCSWB SFC200-SCSWA/M SFC200-SCSWB/M SFC200-SCSWA/I SFC200-SCSWB/I SFC2000-SFP
    RJ45Port 1 TP(100Mbps) 1 TP(100Mbps) 1 TP(100Mbps) 1 TP(100Mbps) 1 TP(100Mbps) 1 TP(100Mbps) 1 TP(100Mbps) 1 TP(100Mbps) 1 TP(100Mbps) 1 TP(100Mbps) 1 TP(100Mbps) 1 TP(100Mbps) 1 TP(100Mbps) 1 TP(100Mbps) 1 TP(100Mbps) 1 TP(100Mbps) 1 TP(100Mbps) 1 TP(100Mbps) 1 TP(1Gbps)
    PoE Port – – – – – – – – – – – – – – – – – – –
    Combo Port – – – – – – – – – – – – – – – – – – –
    SFP/SFP+ Port 1 SC(100Mbps) 1 SC(100Mbps) 1 SC(100Mbps) 1 SC(100Mbps) 1 SC(100Mbps) 1 SC(100Mbps) 1 SC(100Mbps) 1 SC(100Mbps) 1 SC(100Mbps) 1 SC(100Mbps) 1 SC(100Mbps) 1 SC(100Mbps) 1 SC(100Mbps) 1 SC(100Mbps) 1 SC(100Mbps) 1 SC(100Mbps) 1 SC(100Mbps) 1 SC(100Mbps) 1 SFP(100Mbps)
    Fiber Mode Single-mode Single-mode Single-mode Single-mode Single-mode Single-mode Single-mode Single-mode Single-mode Single-mode Single-mode Single-mode Single-mode Single-mode Single-mode Single-mode Single-mode Single-mode Single/Multi-mode
    Transmission Distance 20km 20km 20km 20km 20km 20km 20km 20km 20km 20km 20km 20km 20km 20km 20km 20km 20km 20km 200m/10km
    Wavelength 1310nm 1310nm 1310nm 1310nm 1310nm 1310nm 1310nm 1310nm 1310nm 1310nm 1310nm 1310nm 1550/1310nm 1310/1550nm 1550/1310nm 1310/1550nm 1550/1310nm 1310/1550nm –
    Operating Temperature 0 ~ 60℃ 0 ~ 60℃ 0 ~ 60℃ 0 ~ 60℃ 0 ~ 60℃ 0 ~ 60℃ 0 ~ 60℃ 0 ~ 60℃ 0 ~ 60℃ 0 ~ 60℃ 0 ~ 60℃ 0 ~ 60℃ 0 ~ 60℃ 0 ~ 60℃ 0 ~ 60℃ 0 ~ 60℃ 0 ~ 60℃ 0 ~ 60℃ 0 ~ 60℃
    Power Input DC 5V DC 5V AC 220V DC 5V DC 5V AC 220V DC 5V DC 5V AC 220V DC 5V DC 5V AC 220V DC 5V DC 5V DC 5V DC 5V AC 220V AC 220V DC 12V
    Power Consumption AC 2.9W AC 2.9W AC 3.55W AC 2.9W AC 2.9W AC 3.55W AC 2.9W AC 2.9W AC 3.55W AC 2.9W AC 2.9W AC 3.55W AC 2.9W AC 2.9W AC 2.9W AC 2.9W AC 3.55W AC 3.55W AC 2.27W
    Installation Method Wall Mount Chassis Module Wall Mount Wall Mount Chassis Module Wall Mount Wall Mount Chassis Module Wall Mount Wall Mount Chassis Module Wall Mount Wall Mount Wall Mount Chassis Module Chassis Module Wall Mount Wall Mount Wall Mount
    Dimension(WxDxH) 71x94x26(mm) 12-Slots : 85x95x29.8(mm)
    16-Slots : 87x95x25.5(mm)    		 118x184x34(mm) 71x94x26(mm) 12-Slots : 85x95x29.8(mm)
    16-Slots : 87x95x25.5(mm)    		 118x184x34(mm) 71x94x26(mm) 12-Slots : 85x95x29.8(mm)
    16-Slots : 87x95x25.5(mm)    		 118x184x34(mm) 71x94x26(mm) 12-Slots : 85x95x29.8(mm)
    16-Slots : 87x95x25.5(mm)    		 118x184x34(mm) 71x94x26(mm) 71x94x26(mm) 12-Slots : 85x95x29.8(mm)
    16-Slots : 87x95x25.5(mm)    		 12-Slots : 85x95x29.8(mm)
    16-Slots : 87x95x25.5(mm)    		 118x184x34(mm) 118x184x34(mm) 71x94x26(mm)
