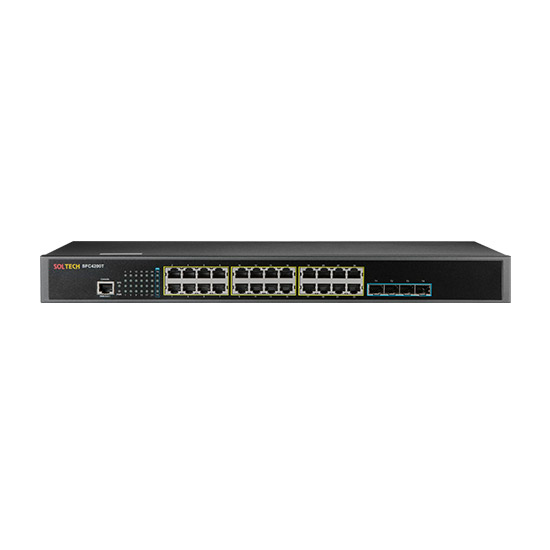

SFC4200T 10G Ethernet optical switch switching hub
Switch Soltech

SFC4200T 10G Ethernet optical switch switching hub

✓ Chính hãng 100%
⚙ Bảo hành chính hãng
⏱ Hỗ trợ 24/7
Yêu cầu báo giá 0978 994 988
Standards IEEE 802.3 10Base-T IEEE 802.3u/x/z 100Base-TX/FX, Gigabit SX/LX IEEE 802.3ad Port trunk with LACP IEEE 802.1w Rapid spanning tree protocol IEEE 802.1Q VLAN Tagging IEEE 802.1x Port Authentication Network Control IEEE 802.3ae 10Gbps Ethernet

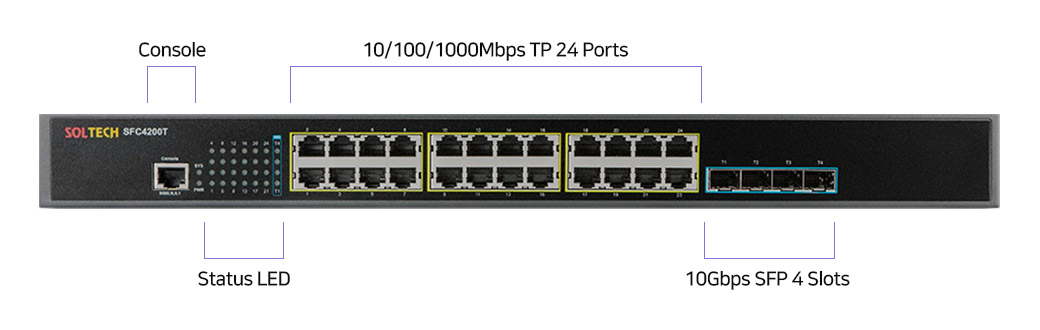

RJ45 Ports 10/100/1000Mbps TP 24-Port Auto-Negotiation Auto MDI-X
Fiber Ports 10G SFP 4-Slot, 10G SFP+ 1G/10G SFP
LED Indicators System : Power Ports : 10/100/1000Mbps Link/Act/Speed, SFP Link

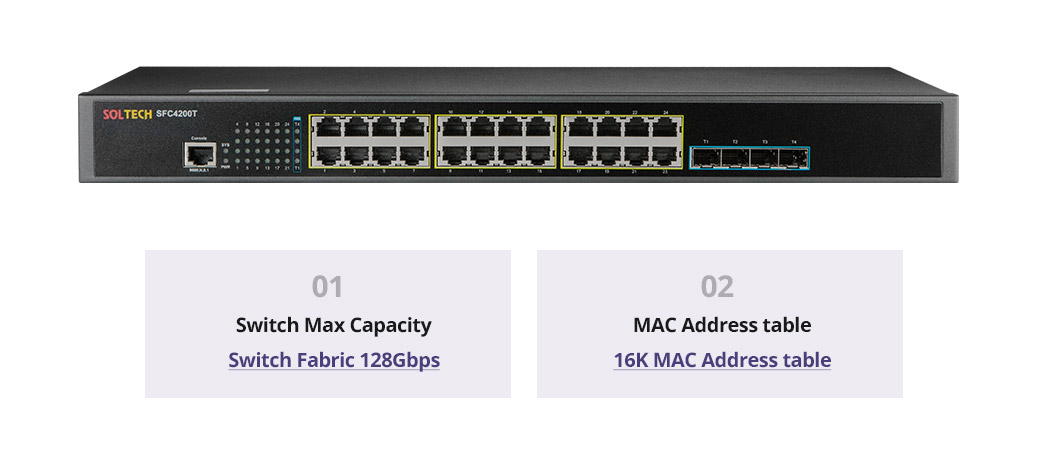

Back Plane Switching Fabric 128Gbps, 16K MAC Address table, Jumbo Frame 9K
Layer 2 Management Interfaces : Console, Telnet, Web Browser, SNMPv1, v2c, SNMP v3 VLAN : 802.1Q Tagged Based VLAN, Port VLAN, Q-in-Q, Private VLAN Edge (PVE) Spanning Tree : IEEE 802.1D, IEEE 802.1w Rapid Spanning Tree, IEEE 802.1s MSTP IEEE 802.3ad LACP / Static Trunk, IGMP (v1/v2/v3) Snooping IP-Based ACL / MAC-Based ACL, 802.1Q VLAN tag QoS
Temperature Operating: 0℃ ~ 60℃ Storage: - 20℃ ~ 80℃
Humidity 5 ~ 95% (Non-condensing)
Power Supply 100 ~ 240VAC, 50/60Hz

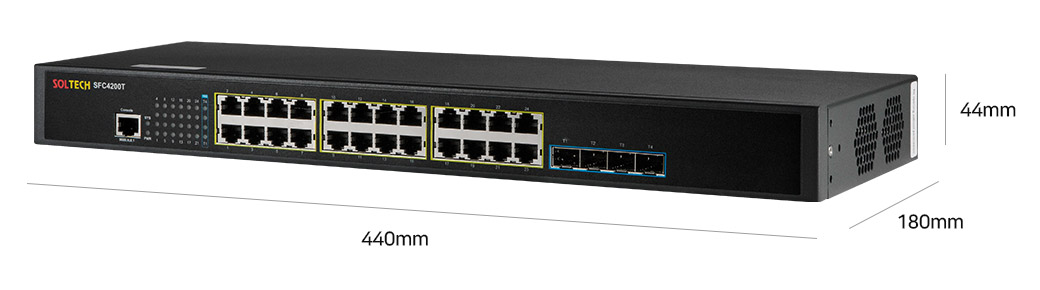

Dimensions 440mm(W) x 180mm(D) x 44mm(H), 1U
  • 10/100/1000Mbps UTP 24-Port
  • 1G/10G SFP 4-Port
  • ERPS support
  • Web based Management, SNMP Management
  • IEEE 802.1p QoS, VolP QoS, 1Q-in-Q function support
  • 802.3ad Link Aggregation Control Protocol (LACP)
  • Port Mirroring for Analysis of Network Errors and Traffics
  • IEEE 802.1d & IEEE 802.1w Rapid Spanning Tree

    Description

    Management Support Web-based management

    TP 4 Ports and SFP 26 slots Ethernet switch hub enables medium and small network deployment and supports web-based management to help customers manage their networks comfortably

    10/100/1000M TP 24 Port SFP 10G SFP 4 Slots Multi Port Switch

    SFC4200T supports 4 SFP slots up to 10Gbps and 24 TP Ports up to 1Gbps for a seamless network experience

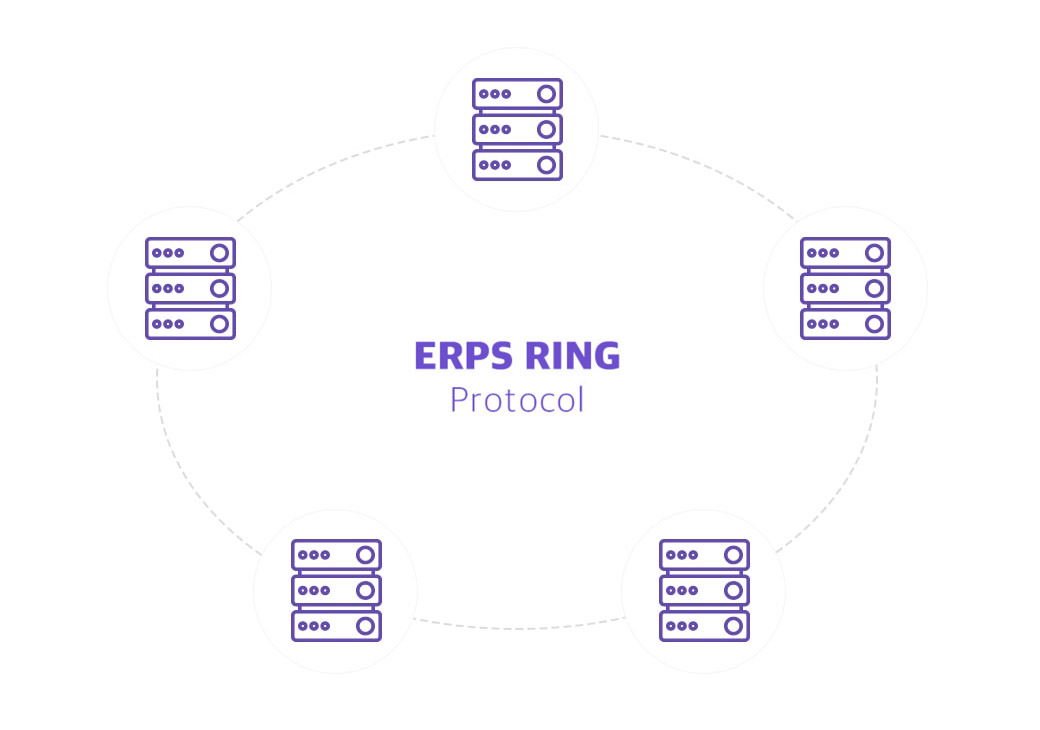

    Stable process ERPS RING Network

    Standard ERPS ring support without hop count constraints provides reliable service by recovering traffic through bypass with protection cut-off technology in the event of node/link failure

    Product Details

    Construction

    Dimensions

    Compare Product Lines

    SFC4000C SFC4100A SFC4100B SFC4200T SFC4200HP SFC4254T SFC4500A SFC4500A(DC)
    RJ45Port 8 TP(1Gbps) 4 TP(1Gbps) 4 TP(1Gbps) 24 TP(1Gbps) 24 TP(1Gbps) 48 TP(1Gbps) 4 TP(1Gbps) 4 TP(1Gbps)
    PoE Port – – – – 24 PoE(af/at) – – –
    Combo Port 8 Port 4 Port(1~4) 4 Port(1~4) – – – 4 Port(1~4) 4 Port(1~4)
    SFP/SFP+ Port 24 SFP(1Gbps)
    4 SFP(10Gbps)    		 24 SFP(1Gbps)
    4 SFP(10Gbps)    		 16 SFP(1Gbps)
    8 SFP(2.5Gbps)
    2 SFP(10Gbps)    		 4 SFP(10Gbps) 4 SFP(10Gbps) 6 SFP(10Gbps) 24 SFP(1Gbps)
    4 SFP(10Gbps)    		 24 SFP(1Gbps)
    4 SFP(10Gbps)
    Switch Fabric 144Gbps 128Gbps 112Gbps 128Gbps 128Gbps 216Gbps 128Gbps 128Gbps
    Throughtput 107.1Mpps 95.2Mpps 83.3Mpps 95.2Mpps 95.2Mpps 160.7Mpps 95.2Mpps 95.2Mpps
    Memory(RAM) 512MB 128MB 128MB 128MB 512MB 256MB 128MB 128MB
    Flash Memory 16MB 16MB 16MB 32MB 32MB 32MB 16MB 16MB
    MAC Table 32K 32K 32K 16K 16K 16K 32K 32K
    Jumbo Frame 9K 4.7K 4.7K 9K 12K 9K 4.7K 4.7K
    Operating Temperature 0 ~ 50℃ 0 ~ 60℃ 0 ~ 60℃ -20 ~ 65℃ 0 ~ 45℃ -20 ~ 65℃ 0 ~ 60℃ 0 ~ 60℃
    Power Input AC 100 ~ 240V AC 100 ~ 240V AC 100 ~ 240V AC 100 ~ 240V AC 100 ~ 240V AC 100 ~ 240V AC 100 ~ 240V AC100~240V, DC48V
    Power Consumption AC 38W AC 33.7W AC 32.6W AC 35W AC 459.9W AC 40W AC 33.7W AC33.7W, DC35W
    PoE Capacity – – – – PoE Max. 400W – – –
    Dual Power – – – – – – –
    Installation Method Rack Mount Rack Mount Rack Mount Rack Mount Rack Mount Rack Mount Rack Mount Rack Mount
    Dimension (WxDxH) 440 x 280 x 44 (mm) 439 x 203 x 44 (mm) 439 x 203 x 44 (mm) 440 x 180 x 44 (mm) 440 x 330 x 44 (mm) 440 x 280 x 44 (mm) 439 x 203 x 44 (mm) 439 x 203 x 44 (mm)
    STP/RSTP/MSTP
    802.1Q VLAN
    IEEE 802.1
    IGMP Snooping
    ERPS, S-RING
