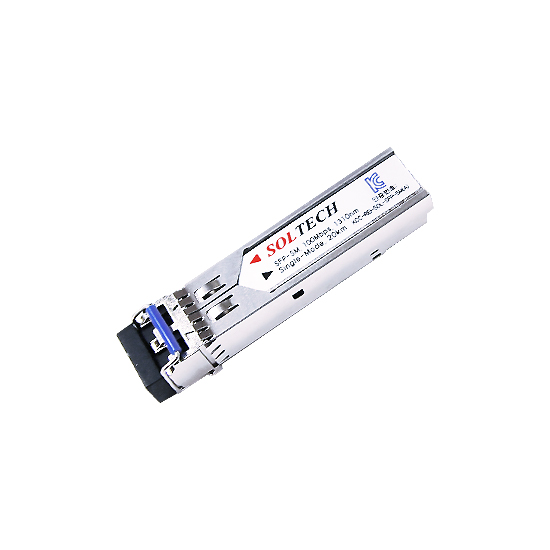

Module quang 1 sợi 1,25Gb GNC-SFP-SM-20AD
✓
Chính hãng 100%
⚙
Bảo hành chính hãng
⏱
Hỗ trợ 24/7
| Speed: | 1.25Gbs | Wavelength: | Tx1310/Rx1550nm |
|---|---|---|---|
| Distance: | 20KM | Connector: | LC |
| DDM: | Support | Fiber Type: | Single Fiber Singlemode |
| Power Supply: | 3.3V | Compatibility: | Cisco, Huawei, HP... |
| Manufacturer: | Yes | Working Temp.: | 0~70℃ |
| Warranty: | 1 Years | ||
| High Light: | DDM Optical Fiber Transceiver Huawei Compatible Optical Fiber Transceiver Aruba Compatible Optical Fiber Module | ||
- Up to 1.25Gb/s Data Links
- Hot-Pluggable
- Single LC connector
- Up to 20km on 9/125μm MMF
- 1310nm FP laser transmitter
- 1550nm PIN photo-detector
- Single +3.3V Power Supply
- Monitoring Interface Compliant with SFF-8472
- Maximum Power <1W
- Industrial /Extended/ Commercial operating temperature range: -40°C to 85°C/-5°C to 85°C/-0°C to 70°C Version available
- RoHS compliant and Lead Free
- Metro/Access Networks
- 1.25 Gb/s 1000Base-LX Ethernet
- 1×Fiber Channel
- Other Optical Links
| Parameter | Symbol | Min. | Typical | Max. | Unit | Note |
| Transmitter Section: | ||||||
| Center Wavelength | λc | 1270 | 1310 | 1360 | nm | |
| Spectral Width(RMS) | σRMS | 3 | nm | |||
| Optical Output Power | Pout | -9 | -3 | dBm | 1 | |
| Extinction Ratio | ER | 8.2 | dB | |||
| Optical Rise/Fall Time | tr / tf | 260 | ps | 2 | ||
| Relative Intensity Noise | RIN | -120 | dB/Hz | |||
| Output Eye Mask | Compliant with IEEE802.3 z (class 1 laser safety) | |||||
| Receiver Section: | ||||||
| Optical Input Wavelength | λc | 1260 | 1360 | nm | ||
| Receiver Overload | Pol | -3 | dBm | 4 | ||
| RX Sensitivity | Sen | -24 | dBm | 4 | ||
| RX_LOS Assert | LOS A | -35 | dBm | |||
| RX_LOS De-assert | LOS D | -25 | dBm | |||
| RX_LOS Hysteresis | LOS H | 0.5 | dB | |||
| General Specifications: | ||||||
| Data Rate | BR | 1.25 | Gb/s | |||
| Bit Error Rate | BER | 10-12 | ||||
| Max. Supported Link Length on 9/125μm SMF@1.25Gb/s | LMAX | 20 | km | |||
| Total System Budget | LB | 15 | dB | |||
| GNETCOM Compatible | GNC-SFP-SM-2AD |
| Vendor Name | Nguyễn Gia |
| Form Factor | SFP |
| Max Data Rate | 1000Mbps |
| Wavelength | T1310nm-TX/1550nm-RX |
| Max Cable Distance | 20km |
| Connector | LC simplex |
| Optical Components | FP BiDi |
| Media | SMF |
| DOM Support | Yes |
| TX Power | -9~-3dBm |
| Receiver Sensitivity | <-23dBm |
| Commercial Temperature Range | 0 to 70°C (32 to 158°F) |
| Protocols | Fast Ethernet, Gigabit Fibre Channel, MSA Compliant |
