SFC300GS 1Gbps TP 2 ports + 1G SFP 2 slots
Switch Soltech

SFC300GS 1Gbps TP 2 ports + 1G SFP 2 slots

✓ Chính hãng 100%
⚙ Bảo hành chính hãng
⏱ Hỗ trợ 24/7
Yêu cầu báo giá 0978 994 988
Standards IEEE 802.3 10Base-T Ethernet IEEE 802.3U 100Base-TX/100Base-FX IEEE 802.3ab 1000Base-T IEEE 802.3z 1000Base-SX/LX
RJ45 Ports Auto-Negotiation 10/100/1000Mbps TP 2-Port Auto MDI/MDI-X UTP/STP Cat. 3, 4, 5 Cable EIA/TIA-568 100-ohm (Transmission Distance 100m)
Fiber Ports 1000Mbps-SX/LX (LC connector)
LED Indicators Power, SFP 1, 2, TP1, 2 (1000Mbps, 100Mbps, Link/Act)
Switch Performance Switch Fabric : 8Gbps Throughput : 5.952Mpps Jumbo Frame : 9216 Byte
Transmission Distance TP-Cable(Cat.5) : 100m MMF(62.5/125) : 220m SMF(8~10/125) : 10~80Km
Temperature Operating Environment : -40℃ ~ 80℃
Humidity 5 ~ 90% (Non-condensing)
Power Supply DC 12V ~ 56V Power Consumption : No Load 1.4W, Full Load 3.6W
Dimensions 37mm (W) x 107.2mm (D) x 96.5mm (H), Din-Rail
  • SFP (1000Mbps) 2-Slot + TP-Port (10/100/1000Mbps) 2-Port
  • Optical slot fixed 1000Mbps
  • Input Power : DC 12V ~ 56V
  • No dual power
  • TP Cable MDI/MDI-X , Auto-Negotiation
  • SFP module compatible (For 1.25Gbps)

    Description

    Industrial switches that withstand extreme environments

    Industrial switch that provides networks at a rapid pace, such as barren industrial sites, smart cities, factories and power plants, and apartment sites.

    Quality verificated 100% Made In Korea

    SFC300GS is a Made in Korea optical converter with reliable internal materials. Check all processes from production to delivery and use them with confidence.

    Build network equipment based on-site environments

    Various equipment such as CCTV, Webcam, Internet modem, IP telephones can be installed for various field environments.

    Product Details

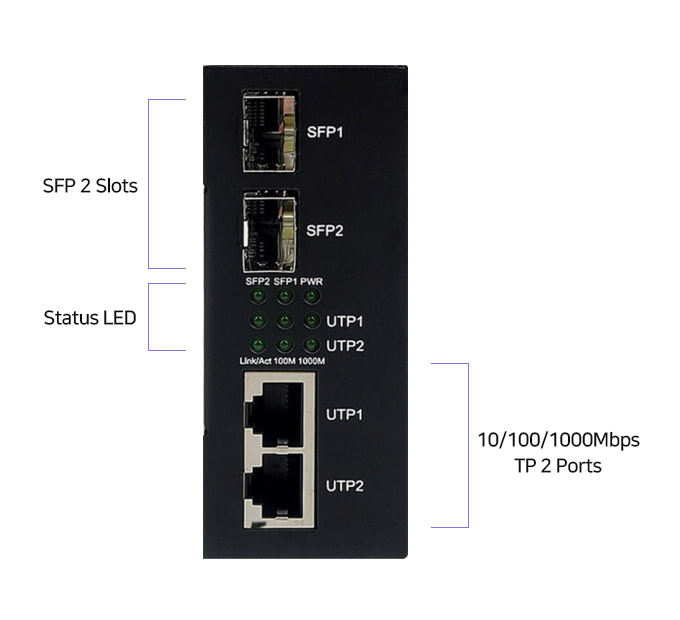

    Construction

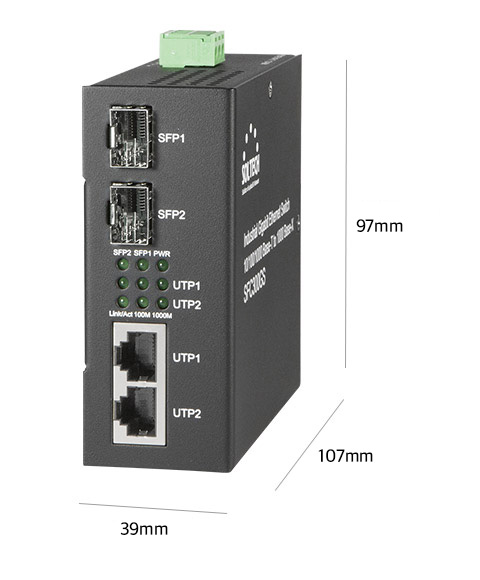

    Dimensions

    Compare Product Lines

    SFC300T SFC300-SCS SFC300-SCS2 SFC300-SCM SFC300-SCM2 SFC300-PoE SFC300-SFP SFC300GS SFC310C
    RJ45Port 4 TP(100Mbps) 4 TP(100Mbps) 4 TP(100Mbps) 4 TP(100Mbps) 4 TP(100Mbps) 4 TP(100Mbps) 4 TP(100Mbps) 2 TP(1Gbps) 1 TP(1Gbps)
    SFP/SFP+ Port – 1 SC(100Mbps) 2 SC(100Mbps) 1 SC(100Mbps) 2 SC(100Mbps) 2 SFP(100Mbps) 2 SFP(100Mbps) 2 SFP(1Gbps) 1 SFP(1Gbps)
    Switch Fabric 0.8Gbps 1Gbps 1.2Gbps 1Gbps 1.2Gbps 1.2Gbps 1.2Gbps 8Gbps 4Gbps
    Throughtput 0.6Mpps 0.7Mpps 0.9Mpps 0.7Mpps 0.9Mpps 0.9Mpps 0.9Mpps 5.9Mpps –
    MAC Table 1K 1K 1K 1K 1K 1K 1K 4K 2K
    Jumbo Frame – – – – – – – 9K 9K
    Operating Temperature -40 ~ 80℃ -40 ~ 80℃ -40 ~ 80℃ -40 ~ 80℃ -40 ~ 80℃ -40 ~ 80℃ -40 ~ 80℃ -40 ~ 80℃ -40 ~ 80℃
    Power Input DC 12 ~ 56V DC 12 ~ 56V DC 12 ~ 56V DC 12 ~ 56V DC 12 ~ 56V DC 48 ~ 56V DC 12 ~ 56V DC 12 ~ 56V DC 12 ~ 56V
    Power Consumption AC 3.7W AC 4.2W AC 4.3W AC 4.2W AC 4.3W AC 65W AC 5.3W AC 4.2W AC 2.1W
    PoE Capacity – – – – – PoE Max. 60W – –
    Installation Method DinRail Mount DinRail Mount DinRail Mount DinRail Mount DinRail Mount DinRail Mount DinRail Mount DinRail Mount DinRail Mount
    Dimension (WxDxH) 42 x 87 x 112 (mm) 42 x 87 x 112 (mm) 42 x 87 x 112 (mm) 42 x 87 x 112 (mm) 42 x 87 x 112 (mm) 41 x 103 x 133 (mm) 41 x 103 x 133 (mm) 39 x 107 x 97 (mm) 33 x 77 x 110 (mm)
