Bộ chuyển đổi Ethernet Megabit SFC200-SCS
Switch Soltech

Bộ chuyển đổi Ethernet Megabit SFC200-SCS

✓ Chính hãng 100%
⚙ Bảo hành chính hãng
⏱ Hỗ trợ 24/7
Yêu cầu báo giá 0978 994 988
Standards IEEE 802.3 10Base-T IEEE 802.3u 100Base-TX/100Base-FX
RJ45 Ports 1-Port 10/100Mbps TP Auto-Negotiation Auto MDI/MDI-X TP/STP Cat. 3, 4, 5, 6 Cable EIA/TIA-568 100-ohm (100m)
Fiber Ports 1-Port 100Mbps (ST/SC connector) Multi-mode : 62.5/125㎛ (2km) Single-mode : 9/125㎛ (~120km)
LED Indicators Per unit : Power Per port(TX) : Link, Activity, FDX/HDX, speed Per port(FX) : Link, Activity
Dip Switch Internal, Auto-Negotiation, 10/100Mbps, Full/Half Duplex, LLCF on/off
Data transfer 100Mbps
Temperature Operation : 0℃ ~ 60℃ Storage : -20℃ ~ 80℃
Humidity 5 ~ 95% (Non-condensing)
Power consumption SFC200-SCS/SCSWA/SCSWB : 2.7W SFC200-SCM : 2.5W SFC200-STM : 3.3W SFC200-SCSWA-I/SCSWB-I/SCS-I : 3.1W SFC200-SCM-I : 3.0W SFC200-STM-I : 3.7W
Installation Stand alone, Center mount module type
Input Voltage DC 5V 2A SMPS Adapter
Dimensions Stand alone : 71mm(W) x 94mm(D) x 26mm(H) Built-in Power Type : 118mm(W) x 184mm(D) x 34mm(H)
  • Converts TP (10/100Mbps) to Fiber Optic (100Mbps-FX) for Long distance Transmission
  • Network Component for Long distance & Noise Solution, Optical LAN, FA, Internet Network, FTTH etc.
  • 10/100Mbps Throughput, Auto Negotiation
  • TP Cable Auto MDI-X
  • LLCF (Link Loss Carry Forward)
  • LED Indication for Auto Negotiation and Connection Status
  • 10/100Mbps, Full/Half-duplex Manual Operation (DIP Switch)

    Description

    Stable long-distance communication Gigabit optical converter 100Mbps TP 1 Port + 100Mbps Fiber 1 Port, Single mode, 20km, 1310nm, SC Connector, Standalone

    Applies RJ-45 connector for 10/100BASE-TX UTP connections and an optical connector for 100BASE-FX connections. Reliable transmission of large bandwidth and long distances over Fast Ethernet networks and required for optical and UTP cable connections.

    Quality verificated 100% Made In Korea

    SFC200-SCS is a Made in Korea optical converter with reliable internal materials. Check all processes from production to delivery and use them with confidence.

    Build network equipment based on-site environments

    Various equipment such as CCTV, Webcam, Internet modem, IP telephones can be installed for various field environments.

    Product Details

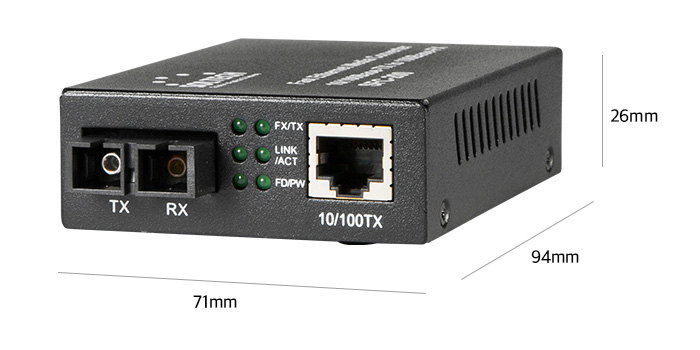

    Dimensions

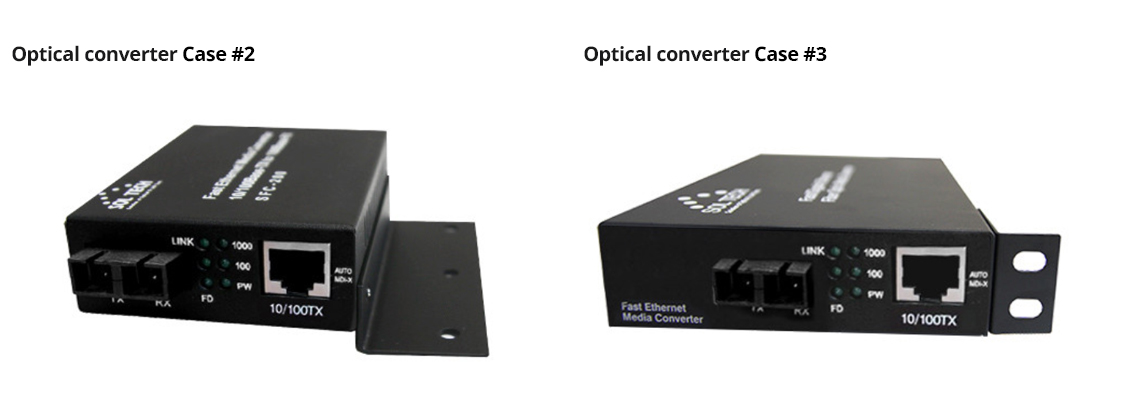

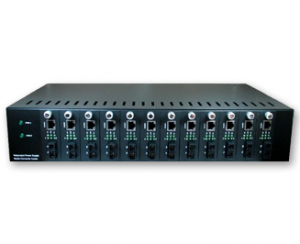

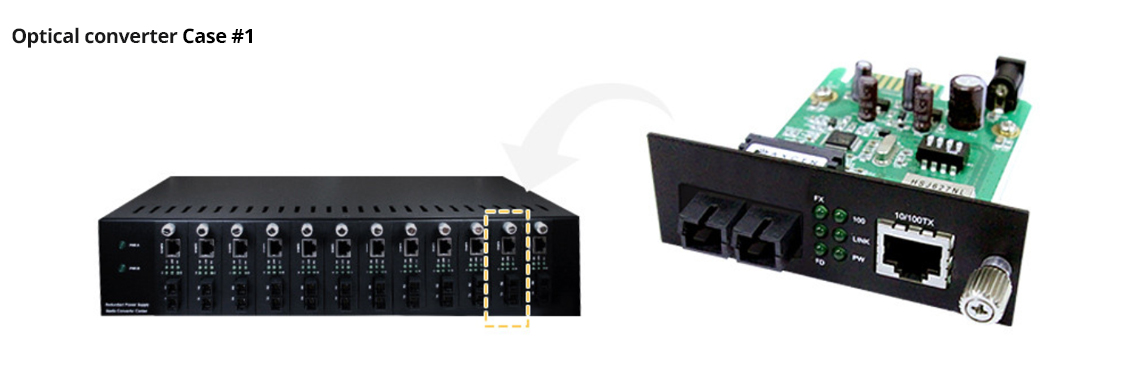

    From one to several Various ways of installations are available.

    *Bracket must be purchased separately.

    Compare Product Lines

    SFC200-SCS SFC200-SCS/M SFC200-SCS/I SFC200-SCM SFC200-SCM/M SFC200-SCM/I SFC200-STM SFC200-STM/M SFC200-STM/I SFC200-SCS40 SFC200-SCS40/M SFC200-SCS40/I SFC200-SCSWA SFC200-SCSWB SFC200-SCSWA/M SFC200-SCSWB/M SFC200-SCSWA/I SFC200-SCSWB/I SFC2000-SFP
    RJ45Port 1 TP(100Mbps) 1 TP(100Mbps) 1 TP(100Mbps) 1 TP(100Mbps) 1 TP(100Mbps) 1 TP(100Mbps) 1 TP(100Mbps) 1 TP(100Mbps) 1 TP(100Mbps) 1 TP(100Mbps) 1 TP(100Mbps) 1 TP(100Mbps) 1 TP(100Mbps) 1 TP(100Mbps) 1 TP(100Mbps) 1 TP(100Mbps) 1 TP(100Mbps) 1 TP(100Mbps) 1 TP(1Gbps)
    PoE Port – – – – – – – – – – – – – – – – – – –
    Combo Port – – – – – – – – – – – – – – – – – – –
    SFP/SFP+ Port 1 SC(100Mbps) 1 SC(100Mbps) 1 SC(100Mbps) 1 SC(100Mbps) 1 SC(100Mbps) 1 SC(100Mbps) 1 SC(100Mbps) 1 SC(100Mbps) 1 SC(100Mbps) 1 SC(100Mbps) 1 SC(100Mbps) 1 SC(100Mbps) 1 SC(100Mbps) 1 SC(100Mbps) 1 SC(100Mbps) 1 SC(100Mbps) 1 SC(100Mbps) 1 SC(100Mbps) 1 SFP(100Mbps)
    Fiber Mode Single-mode Single-mode Single-mode Single-mode Single-mode Single-mode Single-mode Single-mode Single-mode Single-mode Single-mode Single-mode Single-mode Single-mode Single-mode Single-mode Single-mode Single-mode Single/Multi-mode
    Transmission Distance 20km 20km 20km 20km 20km 20km 20km 20km 20km 20km 20km 20km 20km 20km 20km 20km 20km 20km 200m/10km
    Wavelength 1310nm 1310nm 1310nm 1310nm 1310nm 1310nm 1310nm 1310nm 1310nm 1310nm 1310nm 1310nm 1550/1310nm 1310/1550nm 1550/1310nm 1310/1550nm 1550/1310nm 1310/1550nm –
    Operating Temperature 0 ~ 60℃ 0 ~ 60℃ 0 ~ 60℃ 0 ~ 60℃ 0 ~ 60℃ 0 ~ 60℃ 0 ~ 60℃ 0 ~ 60℃ 0 ~ 60℃ 0 ~ 60℃ 0 ~ 60℃ 0 ~ 60℃ 0 ~ 60℃ 0 ~ 60℃ 0 ~ 60℃ 0 ~ 60℃ 0 ~ 60℃ 0 ~ 60℃ 0 ~ 60℃
    Power Input DC 5V DC 5V AC 220V DC 5V DC 5V AC 220V DC 5V DC 5V AC 220V DC 5V DC 5V AC 220V DC 5V DC 5V DC 5V DC 5V AC 220V AC 220V DC 12V
    Power Consumption AC 2.9W AC 2.9W AC 3.55W AC 2.9W AC 2.9W AC 3.55W AC 2.9W AC 2.9W AC 3.55W AC 2.9W AC 2.9W AC 3.55W AC 2.9W AC 2.9W AC 2.9W AC 2.9W AC 3.55W AC 3.55W AC 2.27W
    Installation Method Wall Mount Chassis Module Wall Mount Wall Mount Chassis Module Wall Mount Wall Mount Chassis Module Wall Mount Wall Mount Chassis Module Wall Mount Wall Mount Wall Mount Chassis Module Chassis Module Wall Mount Wall Mount Wall Mount
    Dimension(WxDxH) 71x94x26(mm) 12-Slots : 85x95x29.8(mm)
    16-Slots : 87x95x25.5(mm)    		 118x184x34(mm) 71x94x26(mm) 12-Slots : 85x95x29.8(mm)
    16-Slots : 87x95x25.5(mm)    		 118x184x34(mm) 71x94x26(mm) 12-Slots : 85x95x29.8(mm)
    16-Slots : 87x95x25.5(mm)    		 118x184x34(mm) 71x94x26(mm) 12-Slots : 85x95x29.8(mm)
    16-Slots : 87x95x25.5(mm)    		 118x184x34(mm) 71x94x26(mm) 71x94x26(mm) 12-Slots : 85x95x29.8(mm)
    16-Slots : 87x95x25.5(mm)    		 12-Slots : 85x95x29.8(mm)
    16-Slots : 87x95x25.5(mm)    		 118x184x34(mm) 118x184x34(mm) 71x94x26(mm)
