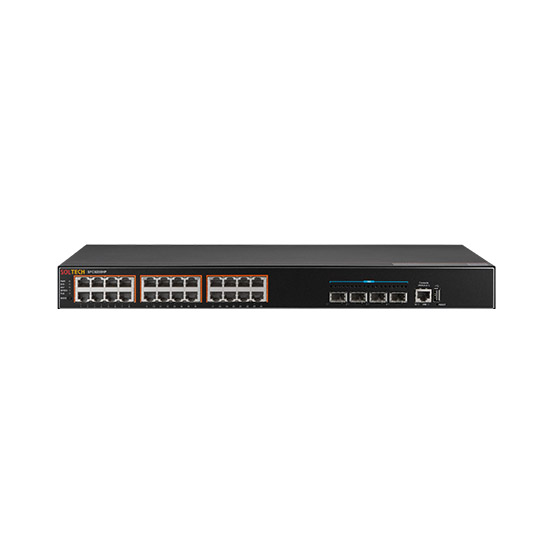

SFC9200HP POE 24-port Gigabit PoE+ (380W) + 10G 4SFP Ethernet optical switch switching hub
✓
Chính hãng 100%
⚙
Bảo hành chính hãng
⏱
Hỗ trợ 24/7
| Standards | IEEE 802.3i, IEEE 802.3u, IEEE802.3ab, IEEE802.3x, IEEE802.3az, IEEE802.3ae, IEEE802.3af, IEEE802.3at 10Base-T : UTP category 3, 4, 5 cable(maximum 100m) 100Base-Tx : UTP category 5, 5e cable(maximum 100m) 1000Base-T : UTP category 5e, 6 cable(maximum 100m) 1000Base-X : MMF, SMF 10GBase-X : MMF, SMF |
|---|---|
| RJ45 Ports | 24 x 10/100/1000Mbps ports(PoE 380W) |
| Fiber Ports | 4 x 10000 Mbps |
| LED Indicators | PWR(Power), STS(Status), MST(Stack), SPEED, PoE, Link/Activity |
| Switching capacity | 128 Gbps/336 Gbps |
| Forwarding performance | 96 Mpps |
| Memory(RAM) | 512 MB |
| Flash memory Hardware | 512 MB, of which 306 MB is available for users |
| Temperature | Operation : -5℃ ~ 50℃ Storage : -40℃ ~ 70℃ |
| Humidity | 5 ~ 95%(Non-condensing) |
| Built-in AC | 100VAC ~ 240VAC, 50/60Hz |
| Dimensions | 442mm (W) x 220mm (D) x 43.6mm (H) |
- UTP 24ports PoE+(380W) + SFP 10G 4Slot Managed switch
- Flexible Ethernet Network Configuration (G.8032 ERPS, STP/RSTP/MSTP)
- Multiple security controls (IEEE802.1x, MAC Certification)
- Easy operation and maintenance (CLI, SSH2, SNMP v1/v2/v3, RMON, GVRP, WEB)
- Stacking (Logical management, bandwidth expansion)
- Network Traffic Analysis (Mirroring, sflow)
Description
Extensive scalability Cost-effective Multi Port Layer3 SwitchSFC9200HP supports 24 UTP ports up to 1Gbps and 4 SFP Slots for 10G for a seamless network experience. In addition, we suggest a reasonable and cost-effective equipment by minimizing the cost of logistics and distribution due to mass production.
Without a separate power line POE Ethernet switch24 ports POE Ethernet switch that provides reliable data and power supply. It provides stable power and supports web-based management, so it can be widely used such as webcam, wireless router, and CCTV.
Stable process EAPS RING NetworkStandard EAPS ring support without hop count constraints provides reliable service by recovering traffic through bypass with protection cut-off technology in the event of node/link failure
Robust Integrated Routing Medium Scale Business NetworkThe robust integration and routing capabilities makes it ideal for use as a key switch in midsize business networks. It also uses intelligent stacking technology to ensure high reliability and provides a variety of access control policies to simplify configuration.
Product Details

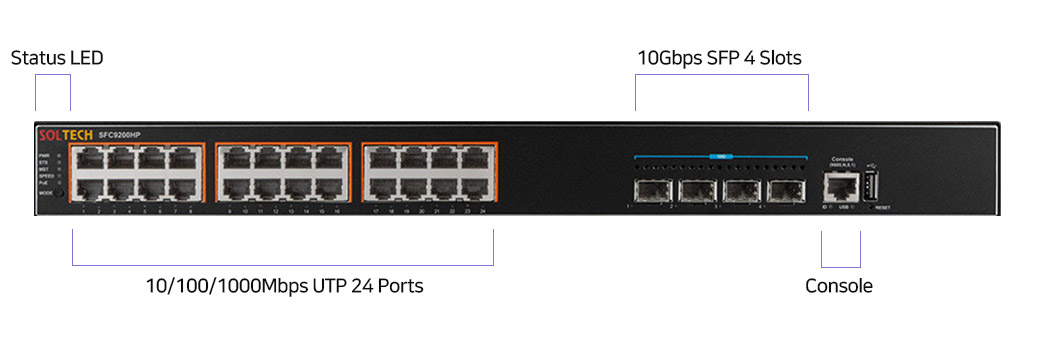

Construction

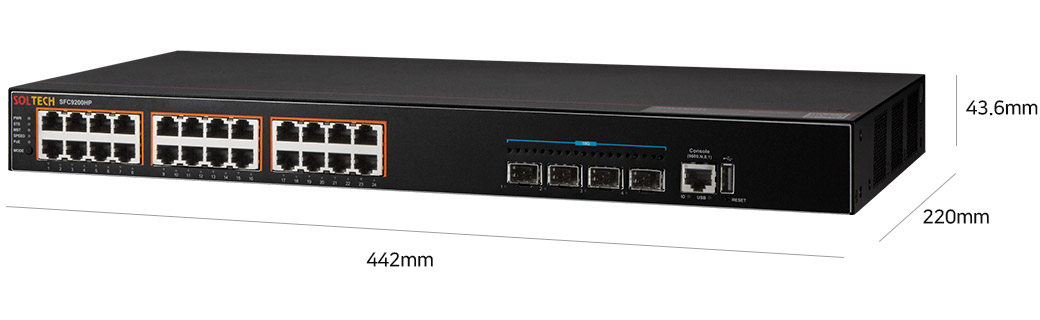

Dimensions
Compare Product Lines
SFC9248HP SFC9248T SFC9200HP SFC9200T SFC9100HP SFC9100T RJ45Port 48 TP(1Gbps) 48 TP(1Gbps) 24 TP(1Gbps) 24 TP(1Gbps) 24 TP(1Gbps) 24 TP(1Gbps) PoE Port 48 PoE(af/at) – 24 PoE(af/at) – 24 PoE(af/at) – SFP/SFP+ Port 4 SFP(10Gbps) 4 SFP(10Gbps) 4 SFP(10Gbps) 4 SFP(10Gbps) 4 SFP(1Gbps) 4 SFP(1Gbps) Switch Fabric 176Gbps 176Gbps 128Gbps 128Gbps 56Gbps 56Gbps Throughput 130.9Mpps 130.9Mpps 95.2Mpps 95.2Mpps 41.6Mpps 41.6Mpps Memory(RAM) 512MB 512MB 512MB 512MB 512MB 512MB Flash Memory 512MB 512MB 512MB 512MB 512MB 512MB MAC Table 32K 32K 32K 32K 32K 32K Jumbo Frame 10K 10K 10K 10K 10K 10K Power Input AC 100 ~ 240V AC 100 ~ 240V AC 100 ~ 240V AC 100 ~ 240V AC 100 ~ 240V AC 100 ~ 240V Minimum/Maximum Power 76.1W / 456.1W – / 51.9W 53.8W / 433.8W – / 45.6W 433.2W – / 47.6W PoE Capacity 380W – 380W – 380W – Installation Method Rack Mount Rack Mount Rack Mount Rack Mount Rack Mount Rack Mount Dimension (WxDxH) 442 x 220 x 43.6 (mm) 442 x 220 x 43.6 (mm) 442 x 220 x 43.6 (mm) 442 x 220 x 43.6 (mm) 442 x 220 x 43.6 (mm) 442 x 220 x 43.6 (mm) STP/RSTP/MSTP
802.1Q VLAN
IEEE 802.1
IGMP Snooping
802.3ad LACP
ERPS
